Radial leaded PTC resettable fuse for overcurrent protection, featuring a 100mA current rating and a maximum voltage rating of 250V AC/DC. This component has a body diameter and height of 8.5mm, with a thermoplastic body material and tin-plated copper contacts. It operates within a temperature range of -55°C to 85°C and boasts a maximum power dissipation of 160mW. Approvals include UL, CSA, IEC, and EN, with a UL94 V-0 flammability rating.
PackageRadial
Current100mA
Voltage Rating250V
Current Rating100mA
Quick Jump:
Technical Specifications
Schurter 0034.6004 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
100mA
Current Rating
100mA
Diameter
8.5mm
Dropout Voltage
300mV
Flammability Rating
UL94 V-0
Fuse Current
100mA
Fuse Size
8.5 X 8.5mm
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
160mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSF 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6004 Datasheet
Download the complete datasheet for Schurter 0034.6004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

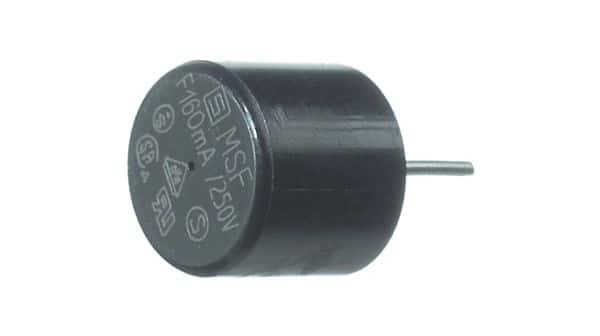

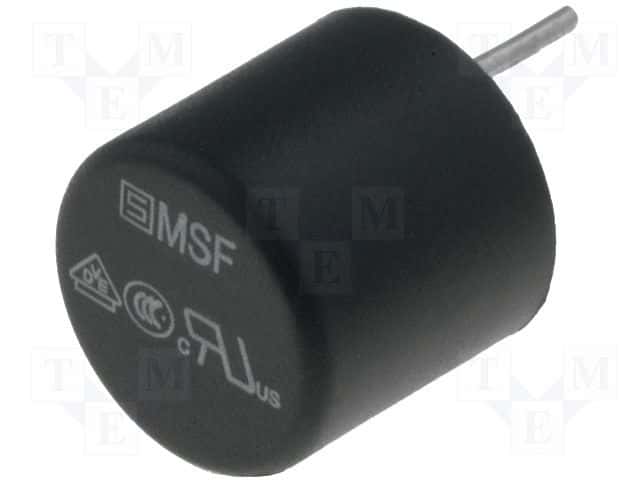

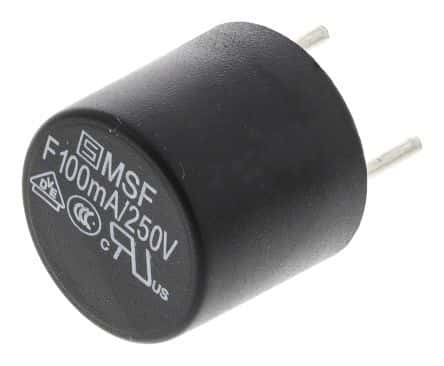

Product Images
