Subminiature fast-acting fuse, 125mA current rating at 250V AC/DC, featuring a 8.5mm x 8.5mm thermoplastic body with radial leads. This through-hole mount component offers a dropout voltage of 210mV and a maximum power dissipation of 180mW. Approvals include VDE, cURus, CCC, UL, CSA, IEC, and EN, with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 85°C, and it is RoHS compliant.
PackageRadial
Current125mA
Storage8.5mm
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 0034.6005 technical specifications.
General
Approvals
VDE, cURus, CCC, UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
125mA
Current Rating
125mA
Diameter
8.5mm
Dropout Voltage
210mV
Flammability Rating
UL94 V-0
Fuse Current
125mA
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
180mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSF 250
Size
8.5mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6005 Datasheet
Download the complete datasheet for Schurter 0034.6005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

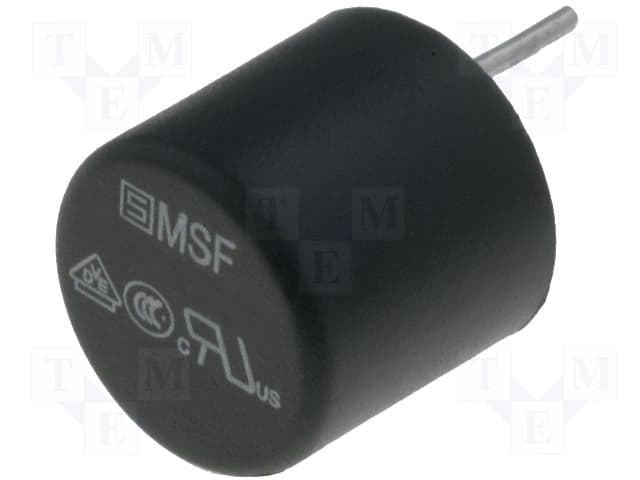

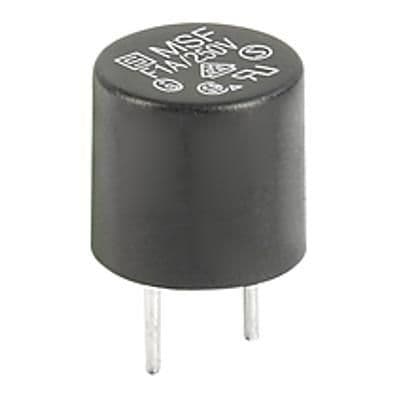

Product Images
