Subminiature fast-acting fuse, 160mA current rating at 250V AC/DC, featuring a 8.5mm x 8.5mm thermoplastic body with radial leads. This through-hole mount component offers a maximum power dissipation of 210mW and operates within a temperature range of -55°C to 85°C. Approvals include VDE, cURus, CCC, UL, CSA, IEC, and EN, with RoHS compliance and UL94 V-0 flammability rating.
PackageRadial
Current100mA
Voltage Rating250V
Current Rating160mA
Quick Jump:
Technical Specifications
Schurter 0034.6006 technical specifications.
General
Approvals
VDE, cURus, CCC, UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
100mA
Current Rating
160mA
Diameter
8.5mm
Dropout Voltage
460mV
Flammability Rating
UL94 V-0
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
210mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Power Dissipation
210mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
MSF 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6006 Datasheet
Download the complete datasheet for Schurter 0034.6006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

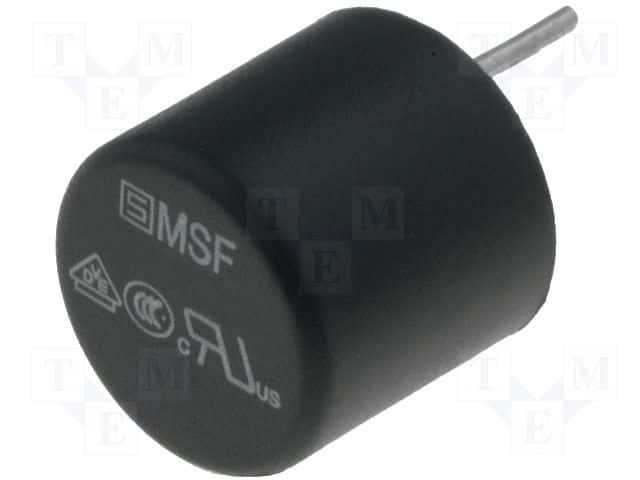

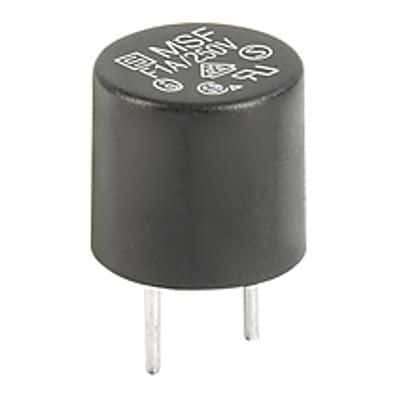

Product Images
