Subminiature fast-acting fuse, 315mA at 250V AC/DC, featuring a 8.5mm x 8.5mm thermoplastic body with radial leads. Designed for PCB mounting, this fuse offers a dropout voltage of 345mV and a maximum power dissipation of 330mW. Operating across a wide temperature range from -55°C to 85°C, it boasts UL94 V-0 flammability rating and is RoHS compliant. Approvals include VDE, cURus, CCC, UL, CSA, IEC, and EN.
PackageRadial
Current315mA
Voltage Rating250V
Current Rating315mA
Quick Jump:
Technical Specifications
Schurter 0034.6009 technical specifications.
General
Approvals
VDE, cURus, CCC, UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
315mA
Current Rating
315mA
Diameter
8.5mm
Dropout Voltage
345mV
Flammability Rating
UL94 V-0
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
330mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
MSF 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6009 Datasheet
Download the complete datasheet for Schurter 0034.6009 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

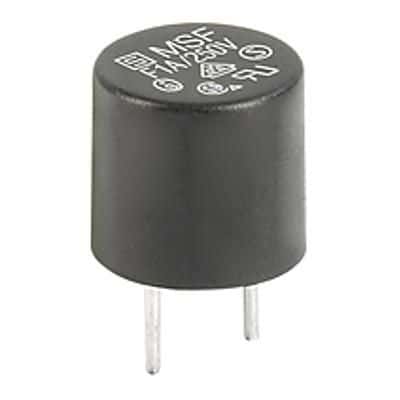

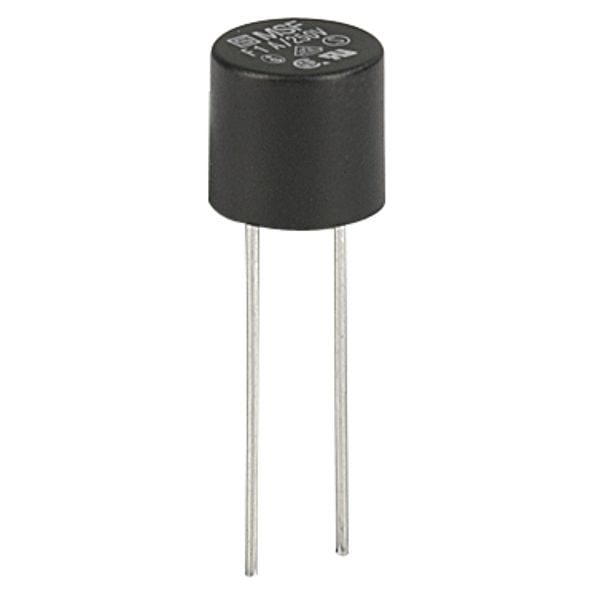

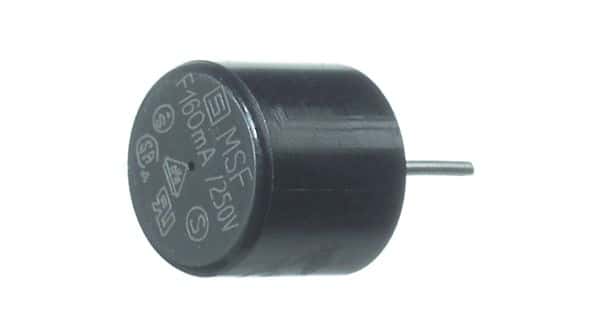

Product Images
