Very fast-acting electric fuse, 1A current rating, 250VAC/250VDC voltage rating. Features a 35A interrupting rating, 70mV dropout voltage, and 740mW power dissipation. Through-hole mounting with radial termination and tin-plated copper contacts. Body dimensions are 8.5mm diameter and height, constructed from UL94 V-0 rated thermoplastic. Compliant with UL, CSA, IEC, and EN approvals, and RoHS compliant.
PackageRadial
Current1A
Voltage Rating250V
Current Rating1A
Quick Jump:
Technical Specifications
Schurter 0034.6014 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
1A
Current Rating
1A
Diameter
8.5mm
Dropout Voltage
70mV
Flammability Rating
UL94 V-0
Fuse Current
1A
Fuse Size
8.5 X 8.5mm
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
740mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Power Dissipation
740mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSF 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6014 Datasheet
Download the complete datasheet for Schurter 0034.6014 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

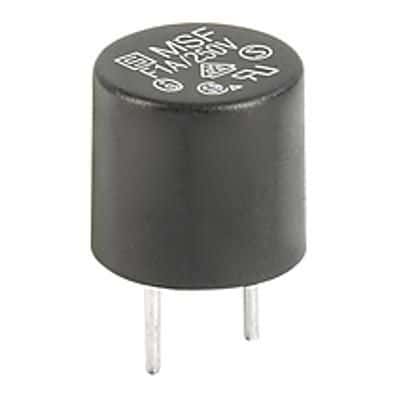

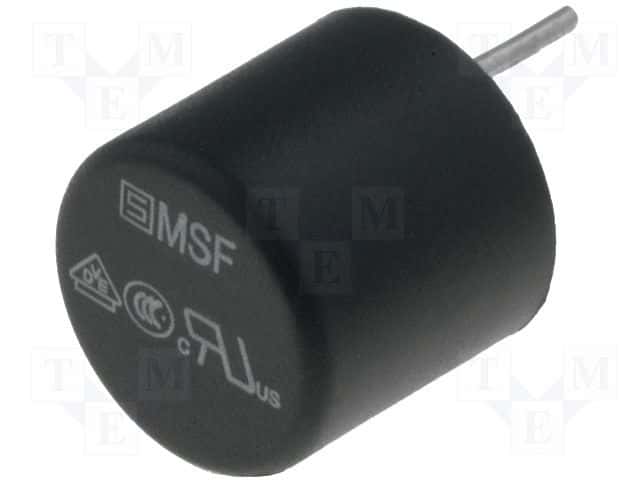

Product Images
