Very fast-acting electric fuse with a 2A current rating and 250VAC/250VDC voltage rating. Features a 35A interrupting rating and a radial, through-hole mounting style suitable for PCB applications. Constructed with a thermoplastic body, copper and tin contacts, and a UL94 V-0 flammability rating. Operates across a wide temperature range of -55°C to 85°C with a maximum power dissipation of 1.36W. Compliant with UL, CSA, IEC, and EN standards, and RoHS compliant.
PackageRadial
Current2A
Voltage Rating250V
Current Rating2A
Quick Jump:
Technical Specifications
Schurter 0034.6017 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
2A
Current Rating
2A
Diameter
8.5mm
Dropout Voltage
70mV
Flammability Rating
UL94 V-0
Fuse Current
2A
Fuse Size
8.5 X 8.5mm
Lead Free
Lead Free
Lead Length
4.3mm
Length
0.335inch
Material
Copper, Tin, Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.36W
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.36W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSF 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.014815oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6017 Datasheet
Download the complete datasheet for Schurter 0034.6017 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

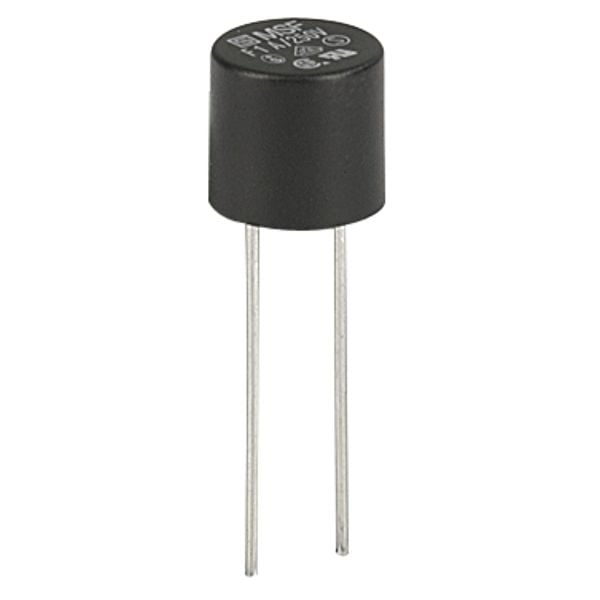

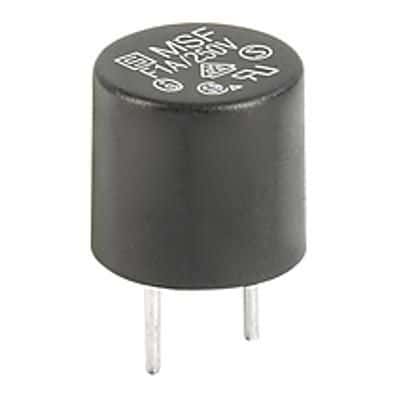

Product Images
