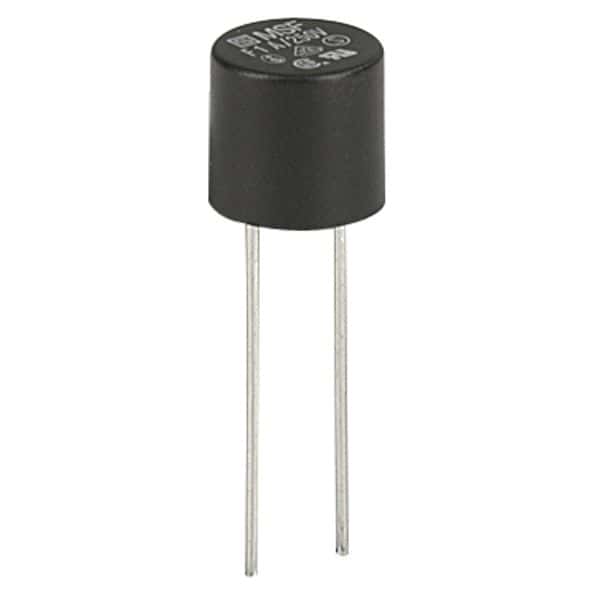

Subminiature fast-acting fuse with a 400mA current rating and 250V AC/DC voltage rating. Features a 8.5mm x 8.5mm thermoplastic body and radial termination for through-hole mounting. Operates across a wide temperature range from -55°C to 85°C and boasts a UL94 V-0 flammability rating. This lead-free, RoHS-compliant component is supplied in bulk packaging.
PackageRadial
Current400mA
Voltage Rating250V
Current Rating400mA
Quick Jump:
Technical Specifications
Schurter 0034.6040 technical specifications.
General
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current
400mA
Current Rating
400mA
Diameter
8.5mm
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
0.335inch
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
MSF 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.017637oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6040 Datasheet
Download the complete datasheet for Schurter 0034.6040 to view detailed technical specifications.
