Subminiature slow-blow fuse, 125mA current rating, 250V AC maximum voltage rating, and 125V DC rated voltage. Features a thermoplastic body with radial leads, measuring 8.5mm x 8.5mm. Compliant with CCC, CSA, IEC, EN, KC, PSE, UL, VDE, and cULus standards, and is RoHS compliant. Designed for through-hole PCB mounting with a maximum power dissipation of 180mW and a maximum operating temperature of 125°C.
PackageRadial
Storage8.5mm
Voltage Rating250V
Current Rating125mA
Quick Jump:
Technical Specifications
Schurter 0034.6606 technical specifications.
General
Approvals
VDE, cURus, CCC, KC, UL, CSA, IEC, EN
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current Rating
125mA
Diameter
8.5mm
Dropout Voltage
270mV
Fuse Current
125mA
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Free
Lead Free
Lead Length
4.3mm
Length
8.5mm
Material
Plastic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
180mW
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MST 250
Size
8.5mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.015873oz
Wire/Cable Diameter
0.64mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6606 Datasheet
Download the complete datasheet for Schurter 0034.6606 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

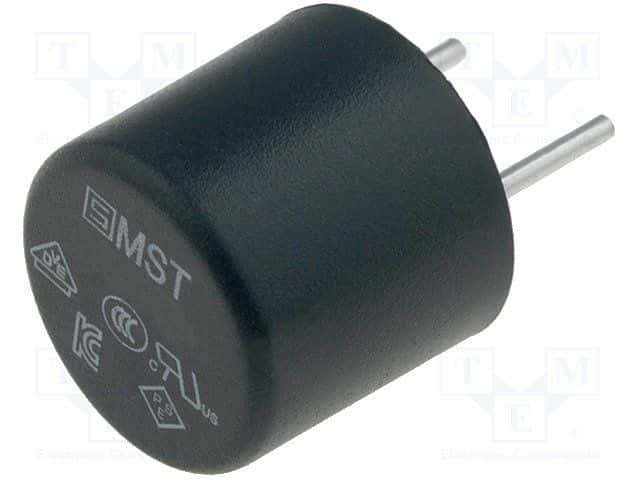

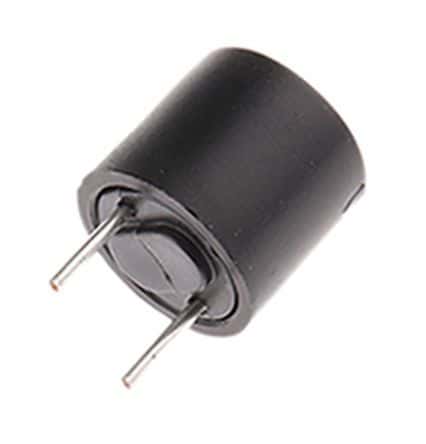

Product Images
