Radial leaded PTC resettable fuse for circuit protection, featuring a 500mA current rating and 250VAC/125VDC voltage rating. This time delay fuse offers a 310mW power dissipation and operates within a -55°C to +125°C temperature range. Constructed with a black thermoplastic body and tin-plated contacts, it is RoHS compliant and suitable for PCB mounting. Approvals include VDE, cURus, CCC, KC, UL, CSA, IEC, and EN.
PackageRadial
Storage8.5mm
Voltage Rating250V
Current Rating500mA
Quick Jump:
Technical Specifications
Schurter 0034.6612 technical specifications.
General
Approvals
VDE, cURus, CCC, KC, UL, CSA, IEC, EN
Blow Characteristic
TIME DELAY

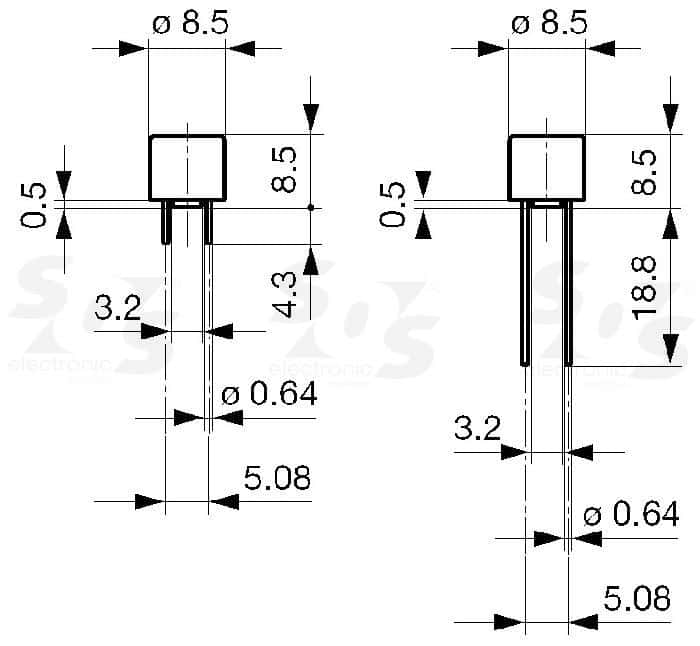

Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Color
Black
Contact Plating
Tin
Current Rating
500mA
Dropout Voltage
100mV
Fuse Current
500mA
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Free
Lead Free
Lead Length
4.3mm
Length
8.5mm
Material
Plastic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
310mW
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Power Dissipation
310mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MST 250
Size
8.5mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.015873oz
Wire/Cable Diameter
0.64mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6612 Datasheet
Download the complete datasheet for Schurter 0034.6612 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

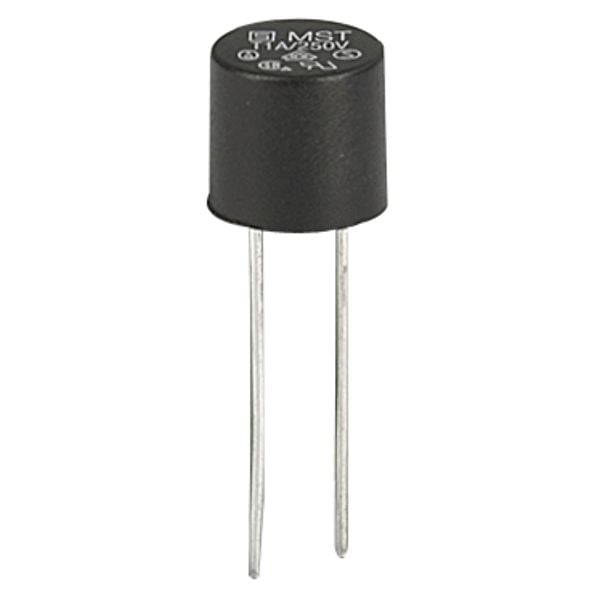

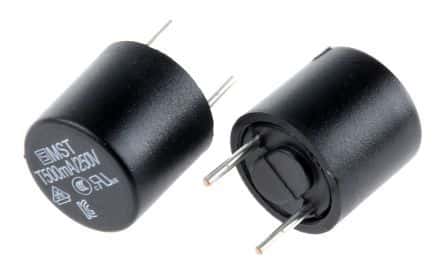

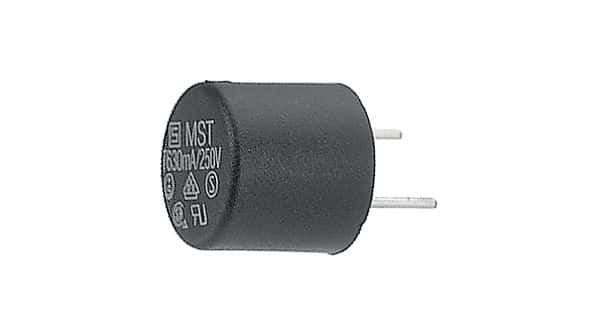

Product Images
