Subminiature slow-blow fuse with a 2A current rating and 250V AC maximum voltage rating. Features a time-delay blow characteristic and a thermoplastic body with radial leads. Dimensions are 8.5mm x 8.5mm, with a 4.3mm lead length. Operating temperature range is -55°C to 125°C. Approvals include UL, CSA, IEC, EN, and it is RoHS compliant.
PackageRadial
Storage8.5mm
Voltage Rating250V
Current Rating2A
Quick Jump:
Technical Specifications
Schurter 0034.6618 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Color
Black
Contact Plating
Tin
Current Rating
2A
Diameter
8.5mm
Dropout Voltage
60mV
Fuse Current
2A
Fuse Size
8.5 X 8.5mm
Lead Free
Lead Free
Lead Length
4.3mm
Length
8.5mm
Material
Plastic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
870mW
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Power Dissipation
870mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MST 250
Size
8.5mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.015873oz
Wire/Cable Diameter
0.64mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6618 Datasheet
Download the complete datasheet for Schurter 0034.6618 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

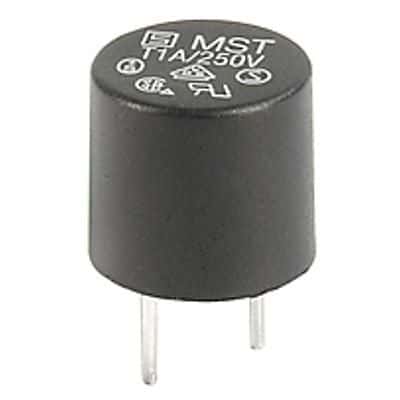

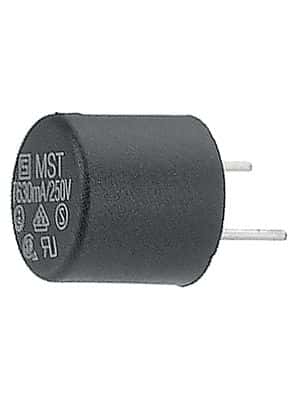

Product Images
