Time-delay electric fuse with a 3.15A current rating and 250VAC/125VDC voltage rating. Features a 35A interrupting rating and a 8.5mm radial package with through-hole mounting for PCB applications. Constructed from thermoplastic with a 4.3mm lead length, operating across a -55°C to 125°C temperature range. Compliant with UL, CSA, IEC, EN, and RoHS standards, offering 1.2W maximum power dissipation.
PackageRadial
Storage8.5mm
Voltage Rating250V
Current Rating3.15A
Quick Jump:
Technical Specifications
Schurter 0034.6620 technical specifications.
General
Approvals
UL, CSA, IEC, EN
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
3.15A
Dropout Voltage
50mV
Fuse Current
3.15A
Fuse Size
8.5 X 8.5mm
Lead Free
Lead Free
Lead Length
4.3mm
Length
8.5mm
Material
Plastic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.2W
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Power Dissipation
1.2W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MST 250
Size
8.5mm
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.015873oz
Width
8.5mm
Wire/Cable Diameter
0.64mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6620 Datasheet
Download the complete datasheet for Schurter 0034.6620 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

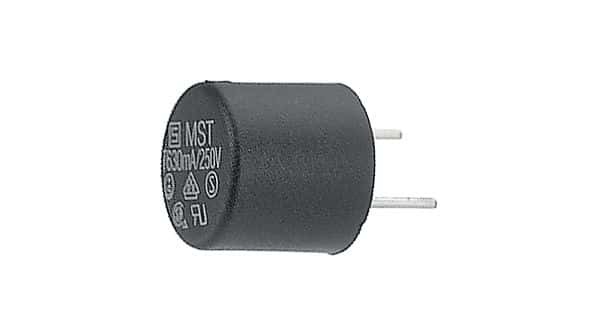

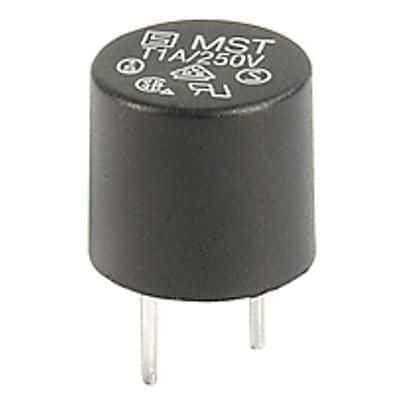

Product Images
