Subminiature slow-blow fuse, 3.15A current rating, 250V AC voltage rating. Features a time-delay blow characteristic and a thermoplastic body with radial termination. Dimensions are 8.5 x 8.5mm with a 4.3mm lead length. Approvals include VDE, cURus, CCC, PSE, and KC. RoHS compliant and UL94 V-0 flammability rated.
PackageRadial
Voltage Rating250V
Current Rating3.15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 0034.6920 technical specifications.
General
Approvals
VDE, cURus, CCC, PSE, KC
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current Rating
3.15A
Flammability Rating
UL94 V-0
Fuse Current
3.15A
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Length
4.3mm
Length
8.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.2W
Max Voltage Rating (AC)
250V
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MXT 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.024692oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6920 Datasheet
Download the complete datasheet for Schurter 0034.6920 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

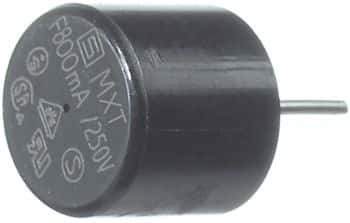

Product Images
