Radial leaded PTC resettable fuse for circuit protection, featuring a 6.3A current rating and 250VAC voltage rating. Designed with a time delay blow characteristic and a thermoplastic body, this component offers a body diameter and height of 8.5mm. It is UL94 V-0 flammability rated and compliant with RoHS standards, suitable for PCB mounting. Approvals include VDE, cURus, CQC, and PSE.
PackageRadial
Voltage Rating125V
Current Rating6.3A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Schurter 0034.6923 technical specifications.
General
Approvals
VDE, cURus, CQC, PSE
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Plastic, Thermoplastic
Package/Case
Radial
Current Rating
6.3A
Diameter
8.5mm
Flammability Rating
UL94 V-0
Fuse Current
6.3A
Fuse Size
8.5 X 8.5mm
Height
0.335inch
Lead Length
4.3mm
Length
8.5mm
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MXT 250
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.024692oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6923 Datasheet
Download the complete datasheet for Schurter 0034.6923 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

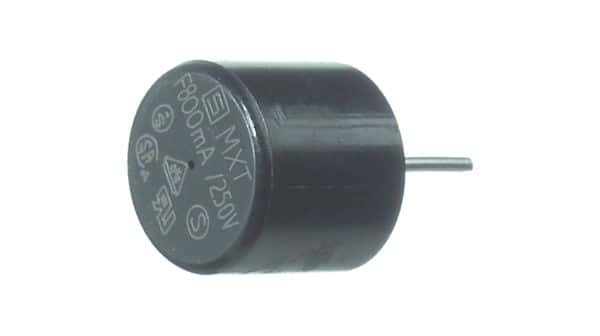

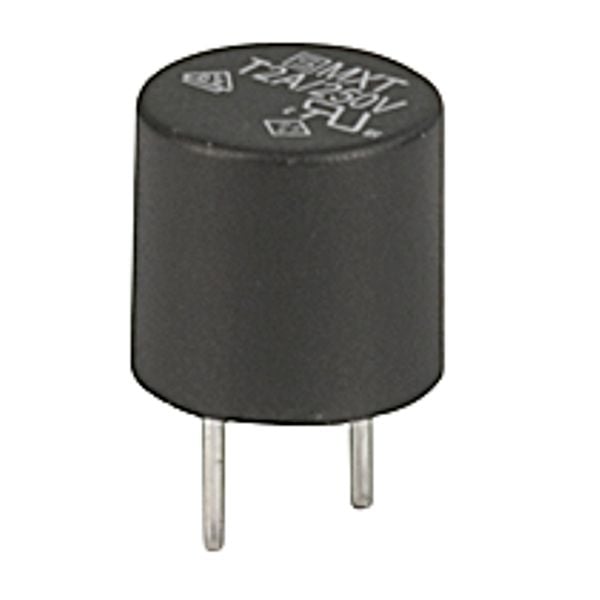

Product Images
