Radial leaded PTC resettable fuse for overcurrent protection, featuring a 10A current rating and 250VAC voltage rating. This time delay fuse has a body diameter and height of 8.5mm, constructed from UL94 V-0 rated thermoplastic. It offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
PackageRadial
Voltage Rating250V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 0034.6925 technical specifications.
General
Blow Characteristic
TIME DELAY
Body Diameter
8.5mm
Body Height
8.5mm
Body Material
Thermoplastic
Package/Case
Radial
Contact Plating
Tin
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
8.5 X 8.5mm
Lead Length
4.3mm
Length
8.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MXT 250
Termination
Radial
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.024692oz
Wire/Cable Diameter
0.64mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0034.6925 Datasheet
Download the complete datasheet for Schurter 0034.6925 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

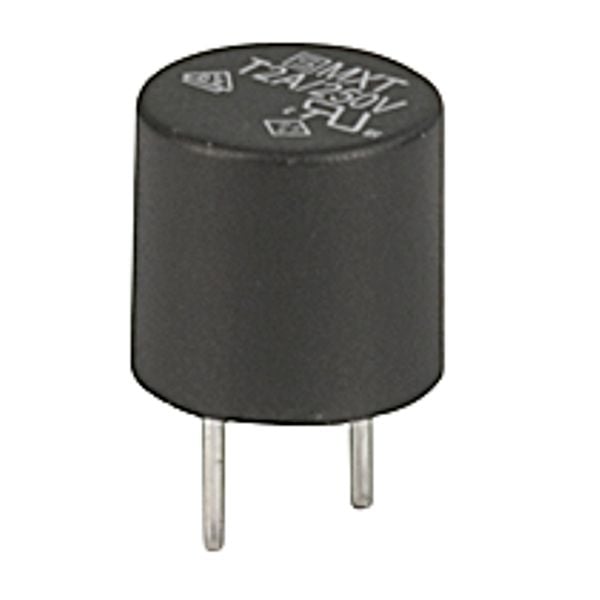

Product Images
