Through-hole fuse holder with a 16A current rating and 600VDC/600VAC voltage rating. Features bronze body and contacts with tin plating, suitable for 0.25" (6.35mm) and 0.197" (5mm) diameter fuses. Operates across a -40°C to 85°C temperature range, with PC pin termination for PCB mounting. This bulk-packaged component offers a 1-circuit horizontal orientation.
Voltage600V
Storage6.6mm
Current Rating16A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Schurter 0751.0099 technical specifications.
General
Body Material
Bronze
Color
Silver
Contact Material
Bronze
Contact Plating
Tin
Current Rating
16A
Depth
6.6mm
Fuse Current
10A
Fuse Size
0.25 Dia (6.35mm), 0.197 Dia (5mm)
Height
11.5mm
Lead Free
Lead Free
Length
12mm
Material
Bronze, Tin
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Number of Circuits
1
Orientation
Horizontal
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
Series
OG
Size
6.6mm
Termination
PC Pin
Voltage
600V
Voltage Rating (AC)
600V
DC Rated Voltage
250V
Weight
0.035979oz
Width
5.8mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0751.0099 Datasheet
Download the complete datasheet for Schurter 0751.0099 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

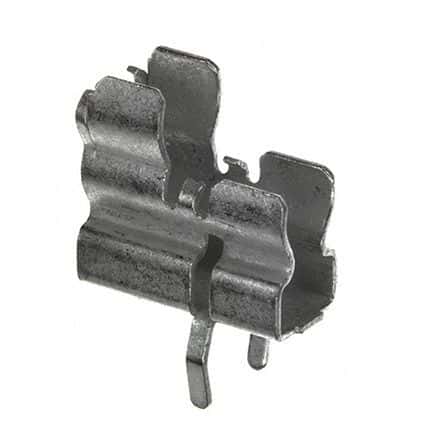

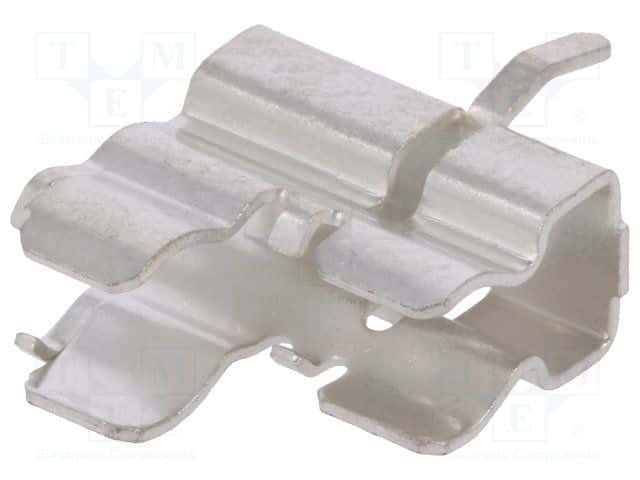

Product Images
