Radial fuse holder for 5mm x 20mm fuses, featuring a 6.3A current rating and 500VDC/500VAC voltage rating. Designed for through-hole PCB mounting with tin-plated brass contacts and a brass body. Operates across a wide temperature range from -40°C to 85°C. This component offers a horizontal orientation and PC pin termination.
Voltage500V
Storage6.1mm
Voltage Rating250V
Current Rating6.3A
Quick Jump:
Technical Specifications
Schurter 0751.0110 technical specifications.
General
Body Material
Brass
Color
Silver
Contact Material
Brass
Contact Plating
Tin
Current Rating
6.3A
Depth
5mm
Fuse Current
6.3A
Fuse Size
5mm x 20mm
Height
8.9mm
Lead Free
Lead Free
Length
5.6mm
Material
Bronze, Tin, Brass
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Horizontal, PCB, Through Hole
Number of Circuits
1
Orientation
Horizontal
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
OG
Size
6.1mm
Termination
PC Pin
Voltage
500V
Voltage Rating
250V
Voltage Rating (AC)
500V
DC Rated Voltage
500V
Weight
0.011288oz
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0751.0110 Datasheet
Download the complete datasheet for Schurter 0751.0110 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

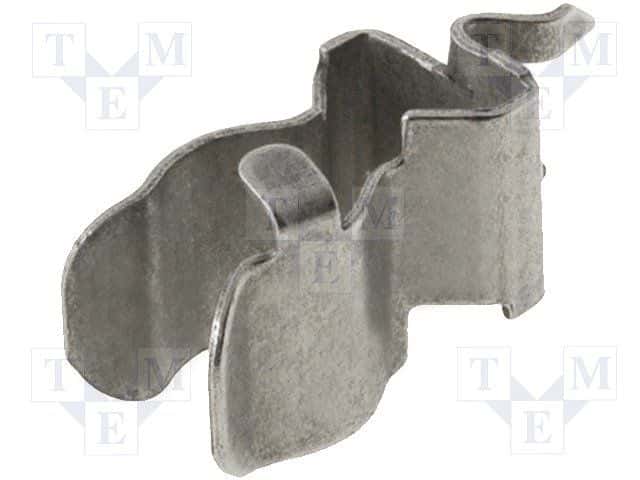

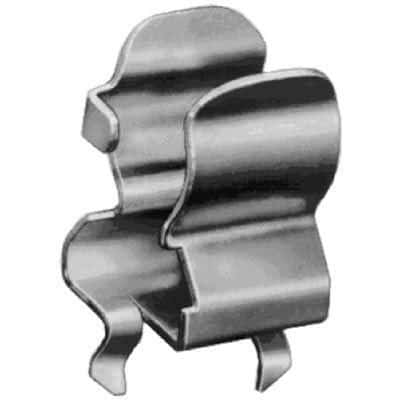

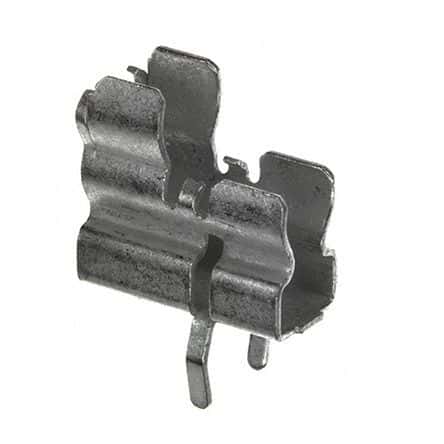

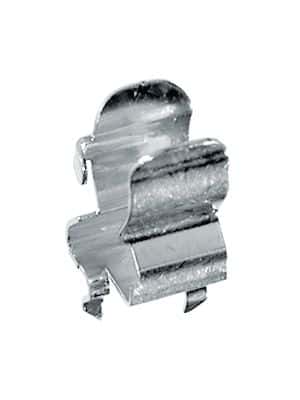

Product Images
