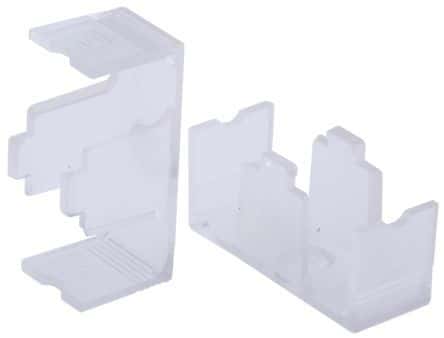

Fuse cover for 5 x 20mm fuses, featuring a 10A current rating and 500VDC voltage rating. Constructed from clear thermoplastic, this component is designed for SMD/SMT mounting. Operating temperature range spans from -40°C to 85°C. The holder box measures 25mm in length, 9.6mm in width, and 12.5mm in height.
PackageSMD/SMT
Current Rating10A
MountingHolder
Quick Jump:
Technical Specifications
Schurter 0853.0551 technical specifications.
General
Body Material
Thermoplastic
Package/Case
SMD/SMT
Color
Clear
Current Rating
10A
Depth
9.6mm
Fuse Current
10A
Fuse Size
5 x 20mm
Height
12.5mm
Lead Free
Lead Free
Length
25mm
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Holder
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
OGN, OGN-SMD
Voltage Rating (AC)
250V
DC Rated Voltage
500V
Weight
0.025397oz
Width
9.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 0853.0551 Datasheet
Download the complete datasheet for Schurter 0853.0551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
