SPST momentary-tactile keypad switch featuring a polyphenylene actuator and a 0.05A current rating at 42VDC. This non-illuminated or illuminated switch offers a 2.2N operating force and 0.35mm travel, with a mechanical life of 1,000,000 cycles. Designed for through-hole mounting with solder terminals, it operates within a temperature range of -40°C to 85°C and boasts IP40 protection.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 1241.1614 technical specifications.
General
Actuator Material
Polyphenylene
Actuator Type
Standard
Contact Current Rating
50mA
Current Rating
50mA
Illumination Type
Non-Illuminated, Illuminated
Max Current Rating
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
30V
Max Voltage Rating (DC)
42V
Mechanical Life
1000000Cycles
Mount
Through Hole
Operating Force
180gf
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PMS
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
30V
DC Rated Voltage
42V
Weight
0.028219oz
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.1614 Datasheet
Download the complete datasheet for Schurter 1241.1614 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

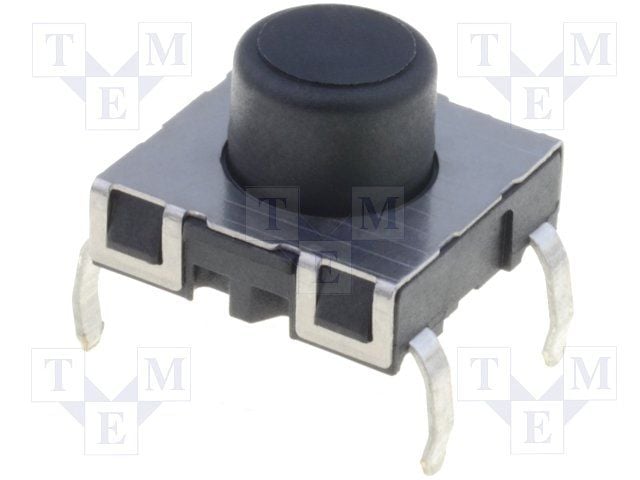

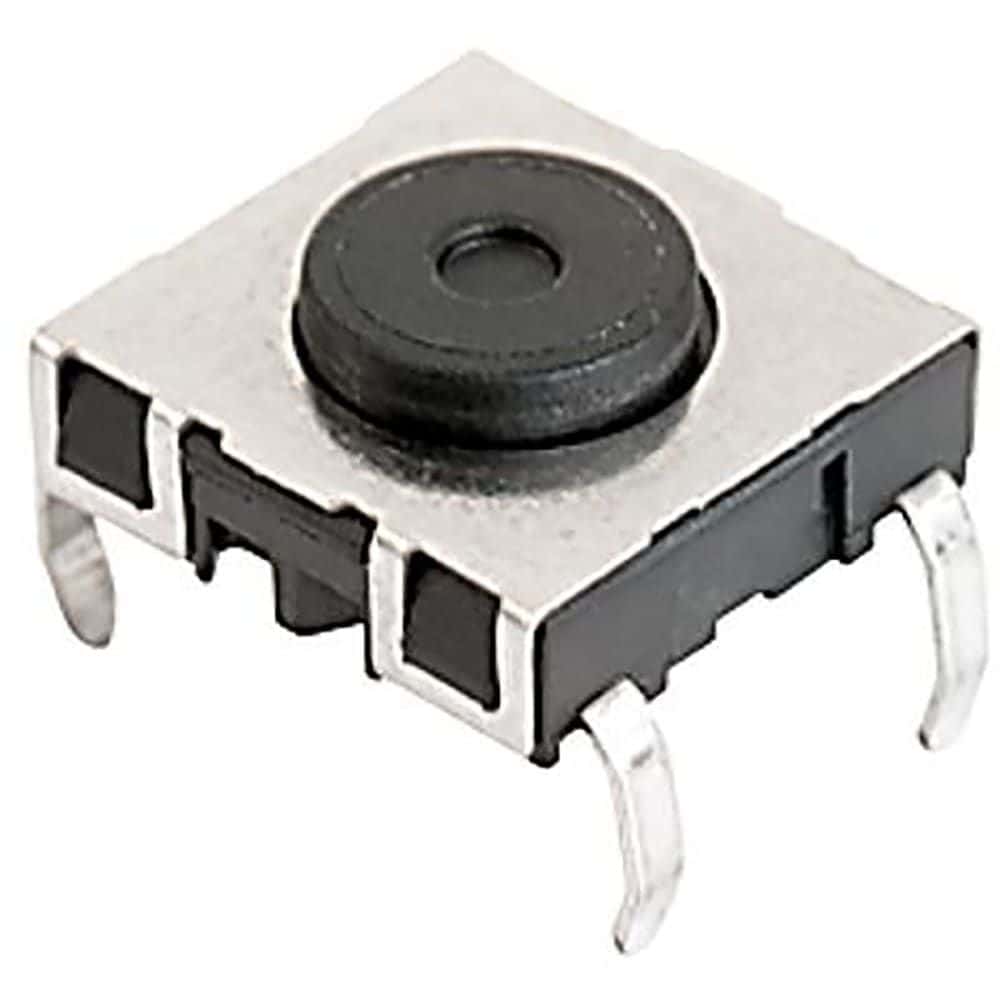

Product Images
