Surface mount keypad switch featuring SPST, momentary-tactile action. Rated for 0.05A and 42VDC, with a 1.8N operating force and 0.35mm travel. Gold-plated contacts ensure reliable performance, while IP67 sealing provides waterproof and dust-tight protection. Suitable for a wide temperature range of -40°C to 85°C, with a mechanical life of 1,000,000 cycles.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 1241.1618.11 technical specifications.
General
Actuator Length
4.1mm
Actuator Material
Polyphenylene
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Current Rating
50mA
Contact Material
Gold
Contact Plating
Gold
Current Rating
50mA
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Max Current Rating
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
30V
Max Voltage Rating (DC)
42V
Mechanical Life
1000000Cycles
Mount
Surface Mount
Operating Force
1.8N
Package Quantity
100
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SMS
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
Gull Wing
Throw Configuration
SPST
Voltage Rating (AC)
30V
DC Rated Voltage
42V
Weight
0.028219oz
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.1618.11 Datasheet
Download the complete datasheet for Schurter 1241.1618.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

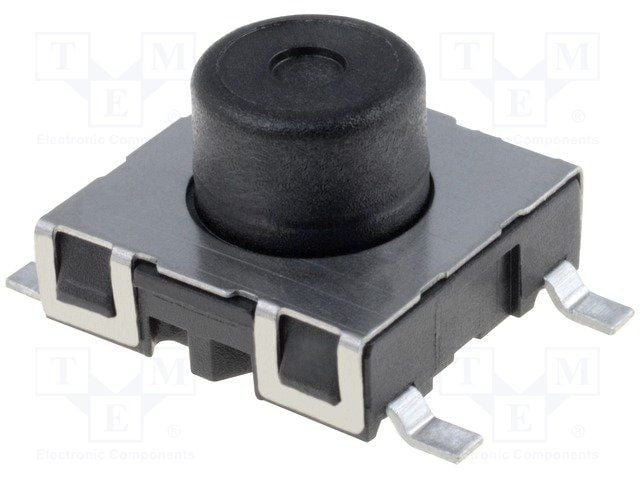

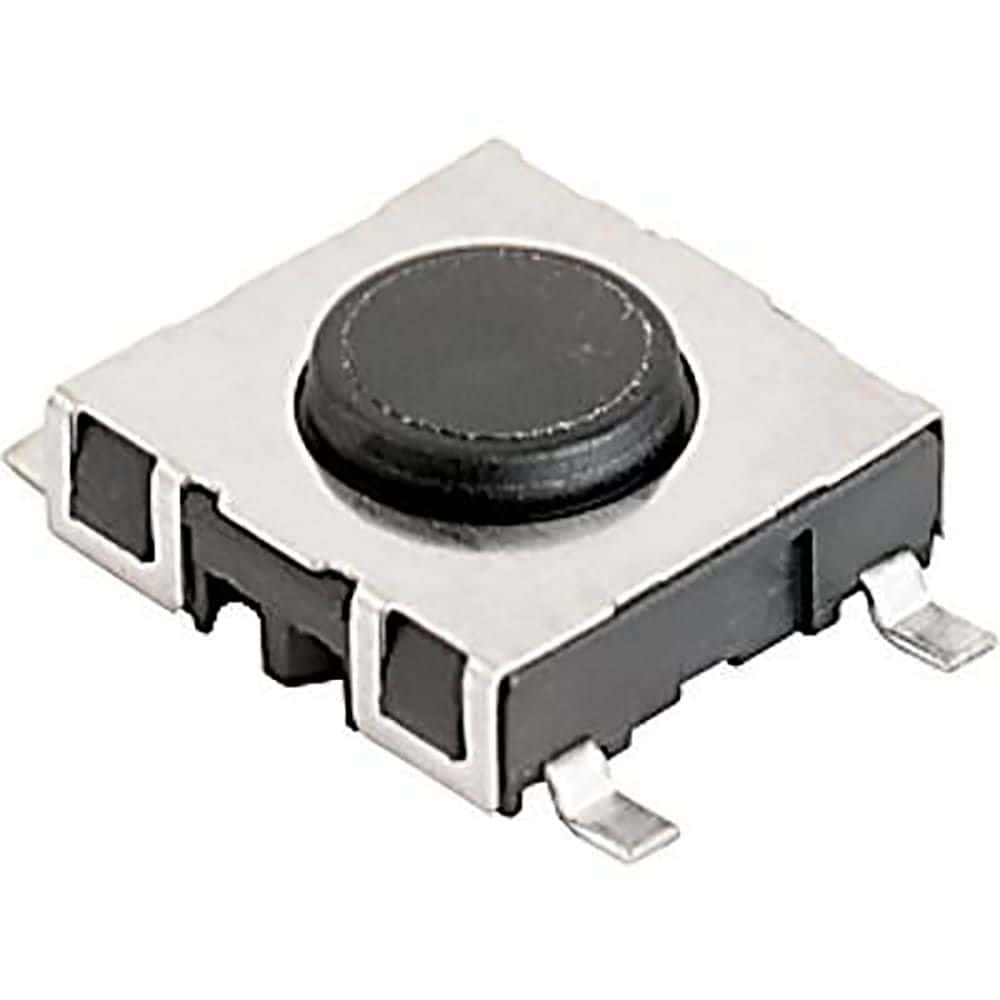

Product Images
