SPST Piezoelectric pushbutton switch featuring a flush, round green actuator. Rated for 100mA at 42VAC/42VDC, with a 1VA switching capacity and 2 million cycle electrical life. Designed for panel or thru-hole mounting with PC pin termination, offering IP67, waterproof, and dust-tight protection. Operating force is 3N, with a temperature range of -40°C to 60°C.
Package100
Current Rating100mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.2411.5 technical specifications.
General
Actuator Type
Round, Button, Flush
Package/Case
100
Color
Green
Contact Current Rating
100mA
Current Rating
100mA
Electrical Life
20000000Cycles
Lead Length
1mm
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Operating Force
3N
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSE
Switch Function
Off-Mom
Switch Type
PIEZO
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.2411.5 Datasheet
Download the complete datasheet for Schurter 1241.2411.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

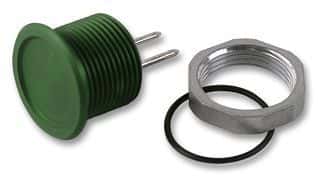

Product Images
