Piezoelectric pushbutton switch featuring a round, flush, black button actuator. SPST (Single Pole Single Throw) configuration with momentary (Off-Mom) function. Rated for 100mA current and 42VAC/42VDC voltage, with a 1VA power rating. Designed for panel or thru-hole mounting with PC pin termination. Offers IP67, waterproof, and dust-tight protection, with an electrical life of 20 million cycles.
PackageMetal
Current Rating100mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.2411.7 technical specifications.
General
Actuator Type
Round, Button, Flush
Package/Case
Metal
Color
Black
Contact Current Rating
100mA
Current Rating
100mA
Electrical Life
20000000Cycles
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Operating Force
3N
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSE
Switch Function
Off-Mom
Switch Type
PIEZO
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Weight
0.282192oz
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.2411.7 Datasheet
Download the complete datasheet for Schurter 1241.2411.7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

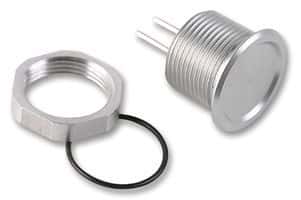

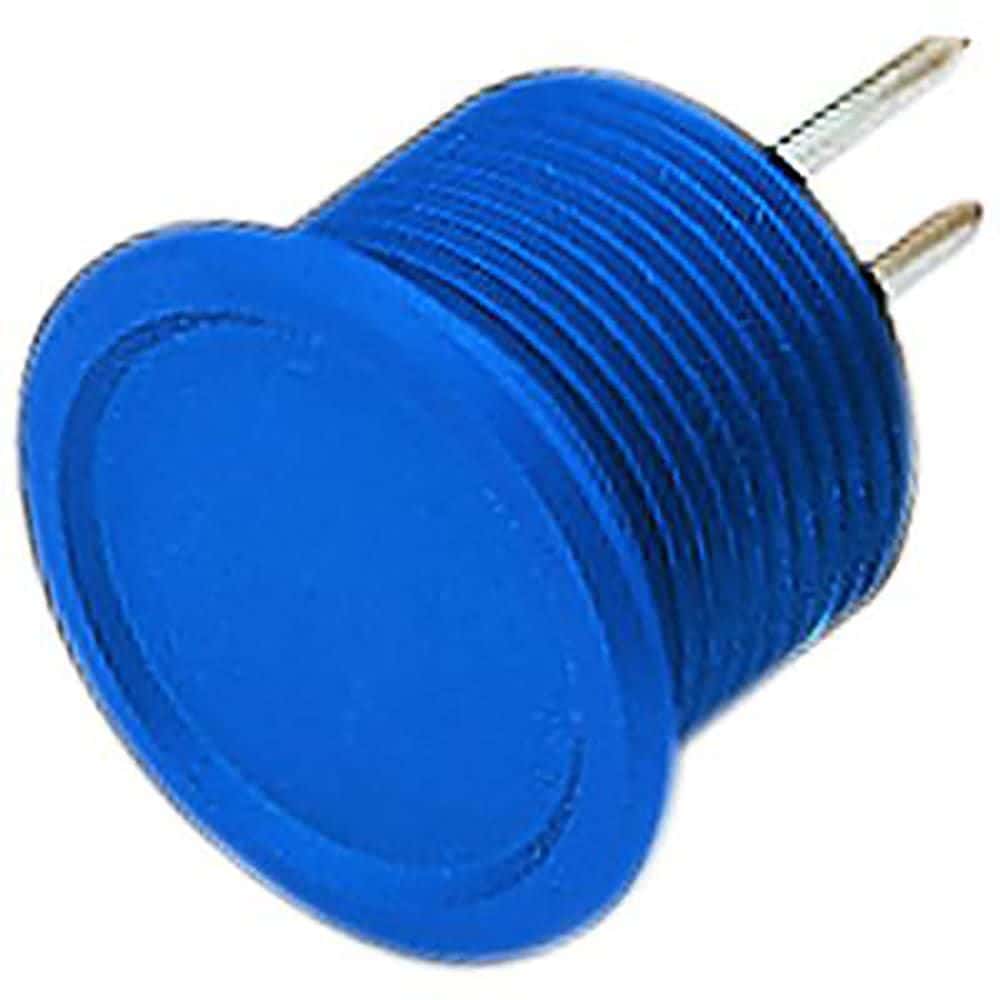

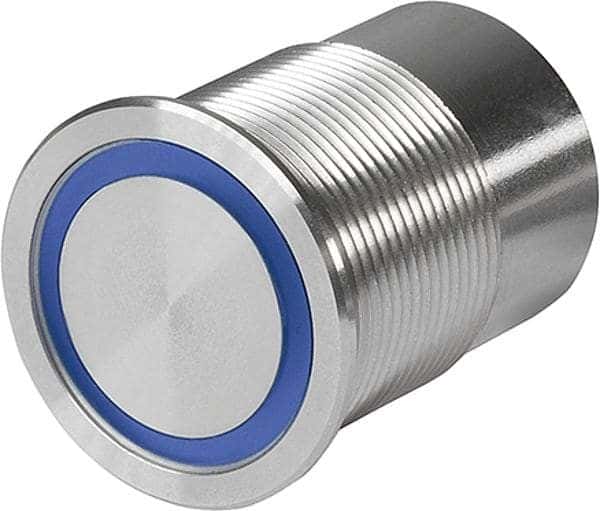

Product Images
