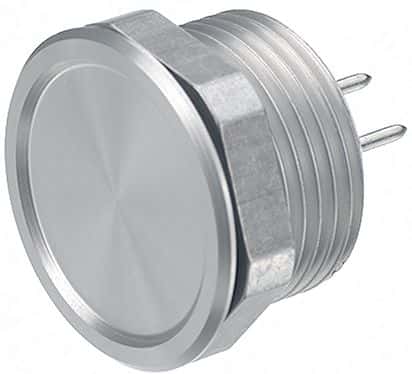

Piezoelectric pushbutton switch featuring a durable anodized aluminum construction with a flush, round button actuator. Offers SPST/SPDT functionality with a 100mA contact current rating and gold-plated contacts. Rated for 42VAC/42VDC and 1VA, this illuminated switch boasts an impressive electrical life of 20 million cycles. Designed for panel or thru-hole mounting with PC pin termination, it provides IP67, waterproof, and dust-tight protection.
Current Rating100mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.3008 technical specifications.
General
Actuator Type
Round, Button, Flush
Approvals
CE
Color
Natural
Contact Current Rating
100mA
Contact Plating
Gold
Current Rating
100mA
Diameter
26mm
Electrical Life
20000000Cycles
Illumination Type
Illuminated
Lead Length
1mm
Material
Aluminium, Anodized
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Operating Force
3N
Package Quantity
10
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSE
Switch Function
Off-Mom
Termination
PC Pin
Thickness
15mm
Throw Configuration
SPST, SPDT
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.3008 Datasheet
Download the complete datasheet for Schurter 1241.3008 to view detailed technical specifications.
