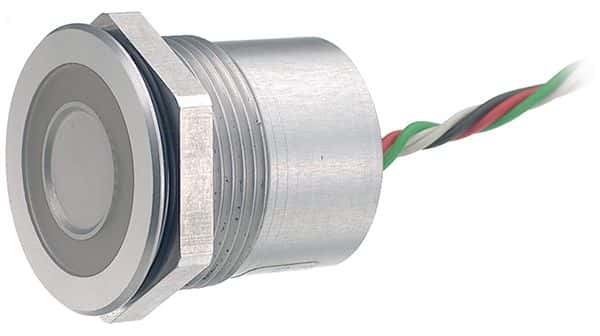

Piezoelectric pushbutton switch featuring a stainless steel, flush, round actuator. Offers SPST/SPDT functionality with a 100mA contact current rating and 42VAC/60VDC voltage rating. Designed for panel mounting with wire lead termination, this illuminated switch provides LED illumination in green, red, or multiple colors. Rated IP67 for waterproof and dust-tight operation, it boasts an electrical life of 20 million cycles and an operating temperature range of -40°C to 85°C.
Current Rating100mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.3012 technical specifications.
General
Actuator Material
Stainless Steel
Actuator Type
Round, Button, Flush
Approvals
CE
Color
Natural
Contact Current Rating
100mA
Contact Plating
Gold
Current Rating
100mA
Diameter
33.8mm
Electrical Life
20000000Cycles
Illumination Color
Green, Red, Multiple
Illumination Type
LED, Illuminated
Material
Aluminium, Anodized
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
42V
Max Voltage Rating (DC)
60V
Mount
Panel, Front
Operating Force
3N
Package Quantity
10
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSE
Switch Function
Off-Mom
Termination
Wire Leads
Thickness
33.6mm
Throw Configuration
SPST, SPDT
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.3012 Datasheet
Download the complete datasheet for Schurter 1241.3012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
