Schurter
1241.3075
Switch Piezo N.O. SPST 0.1A 42VAC 60VDC 1VA Pulse PC Pins Panel Mount/Thru-Hole Box
Current Rating100mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.3075 technical specifications.
General
Actuator Type
Round, Button, Flush
Current Rating
100mA
Electrical Life
20000000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Package Quantity
10
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
PSE
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Weight
0.003527oz
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.3075 Datasheet
Download the complete datasheet for Schurter 1241.3075 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

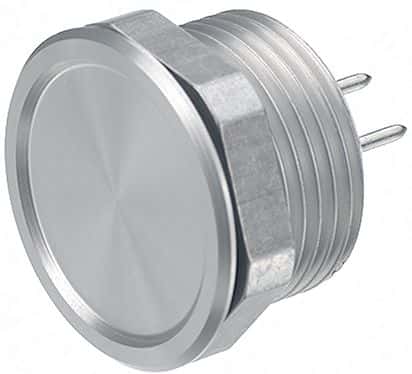

Product Images
