Piezoelectric pushbutton switch featuring a round, flush aluminum actuator with a red button and natural aluminum bezel. Rated for 100mA at 42V AC/DC, this switch offers a 2 million cycle electrical life and a 3N operating force. It includes red LED illumination and is sealed to IP67 standards for waterproof and dust-tight operation. Designed for panel mounting with wire lead termination, it supports both SPST and SPDT configurations.
PackageAluminum
Current Rating100mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Schurter 1241.3256 technical specifications.
General
Actuator Type
Round, Button, Flush
Package/Case
Aluminum
Color
Red, Natural
Contact Current Rating
100mA
Contact Plating
Silver
Current Rating
100mA
Electrical Life
20000000Cycles
Illumination Color
Red
Illumination Type
LED
Material
Aluminium, Anodized
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Number of Positions
2
Operating Force
3N
Package Quantity
10
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PSE
Switch Function
Off-Mom
Termination
Wire Leads
Throw Configuration
SPST, SPDT
Voltage Rating (AC)
42V
DC Rated Voltage
42V
Compliance
RoHS
Compliant
Datasheet
Schurter 1241.3256 Datasheet
Download the complete datasheet for Schurter 1241.3256 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

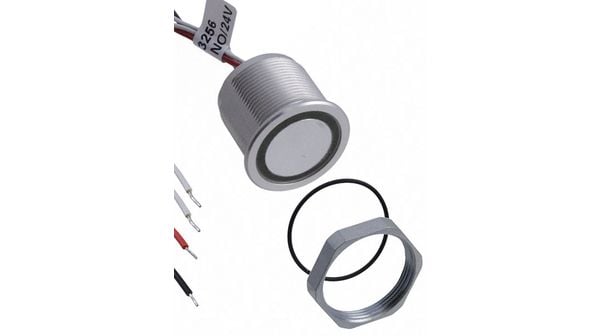

Product Images
