SPST momentary-tactile keypad switch featuring a 1.6N operating force and 0.25mm switch travel. Rated for 0.05A and 12VDC, this through-hole component utilizes copper and silver contact material. Designed for PCB mounting with solder terminals, it offers a mechanical life of 100,000 cycles and operates within a -20°C to 70°C temperature range. IP40 rated and RoHS compliant.
Voltage Rating12V
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 1301.9302 technical specifications.
General
Actuator Length
1.5mm
Actuator Type
Standard
Contact Material
Copper, Silver
Current Rating
50mA
Illumination Type
Non-Illuminated, Illuminated
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
12V
Mount
Through Hole
Operating Force
1.6N
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPH
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Solder
Throw Configuration
SPST
Voltage Rating
12V
DC Rated Voltage
12V
Weight
0.009171oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 1301.9302 Datasheet
Download the complete datasheet for Schurter 1301.9302 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

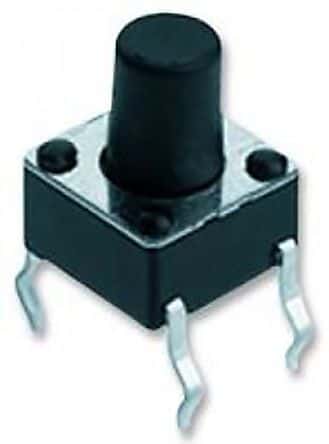

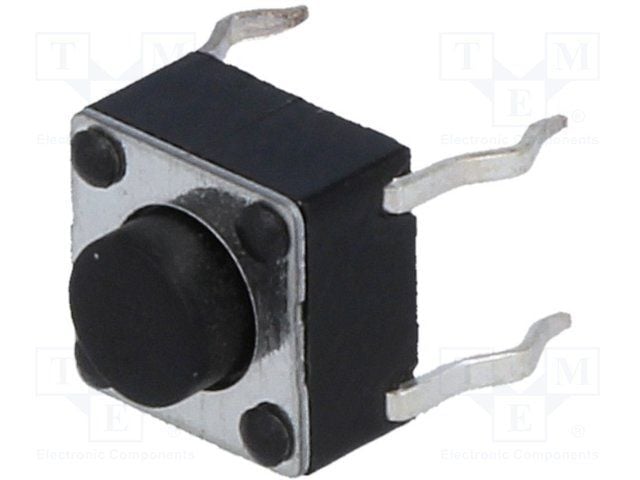

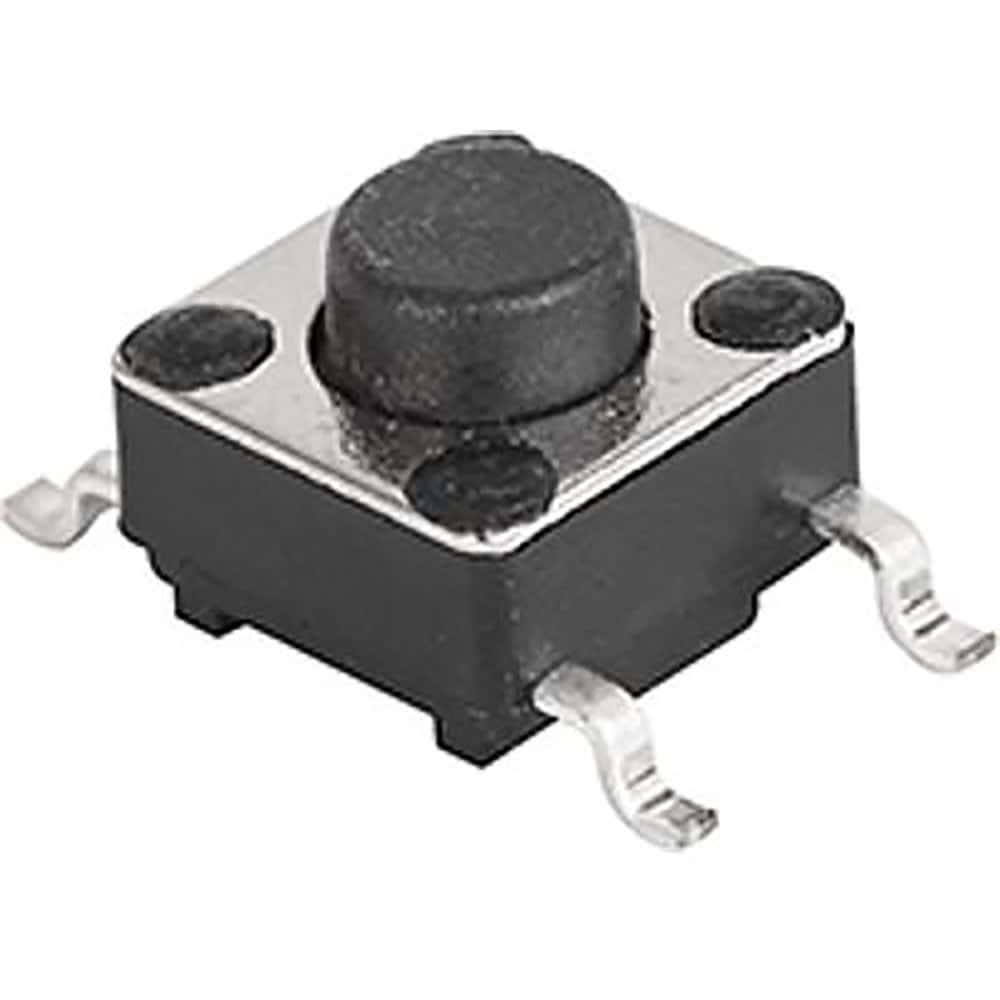

Product Images
