SPST momentary-tactile keypad switch featuring a 12VDC, 50mA rating. This through-hole, straight-mount component offers a 2.1N operating force and 0.25mm switch travel. Constructed with copper and silver contacts, it boasts a mechanical life of 100,000 cycles and an IP40 rating. Operating temperature range is -20°C to 70°C.
Voltage Rating12V
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 1301.9305 technical specifications.
General
Actuator Length
4.5mm
Actuator Type
Standard
Contact Material
Copper, Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
1.6N
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
RoHS Compliant
Yes
Series
LPH
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Solder
Throw Configuration
SPST
Voltage Rating
12V
DC Rated Voltage
12V
Weight
0.010582oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 1301.9305 Datasheet
Download the complete datasheet for Schurter 1301.9305 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

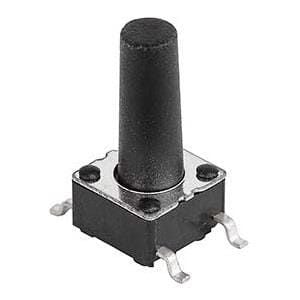

Product Images
