SPST momentary-tactile keypad switch with a 12VDC, 50mA contact rating. Features a 2.1N operating force, 0.25mm switch travel, and a mechanical life of 100,000 cycles. This non-illuminated or illuminated switch offers a straight, through-hole mounting with solder terminals and an IP40 rating.
Voltage Rating12V
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 1301.9307 technical specifications.
General
Actuator Length
9mm
Actuator Type
Standard
Contact Current Rating
50mA
Contact Material
Copper, Silver
Current Rating
50mA
Depth
6.8mm
Illumination Type
Non-Illuminated, Illuminated
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Mount
Through Hole
Number of Positions
2
Operating Force
1.6N
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPH
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Solder
Throw Configuration
SPST
Voltage Rating
12V
DC Rated Voltage
12V
Weight
0.01164oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 1301.9307 Datasheet
Download the complete datasheet for Schurter 1301.9307 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

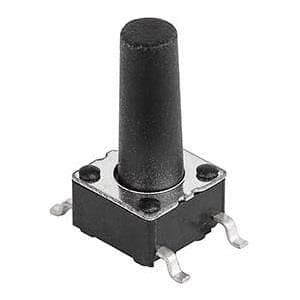

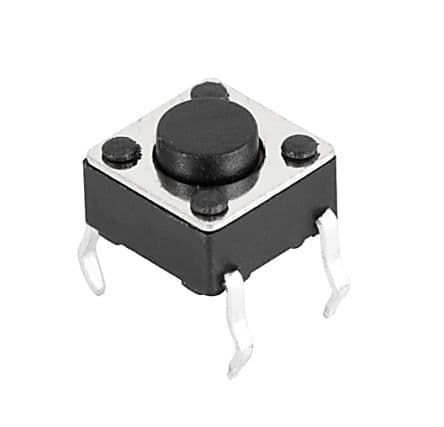

Product Images
