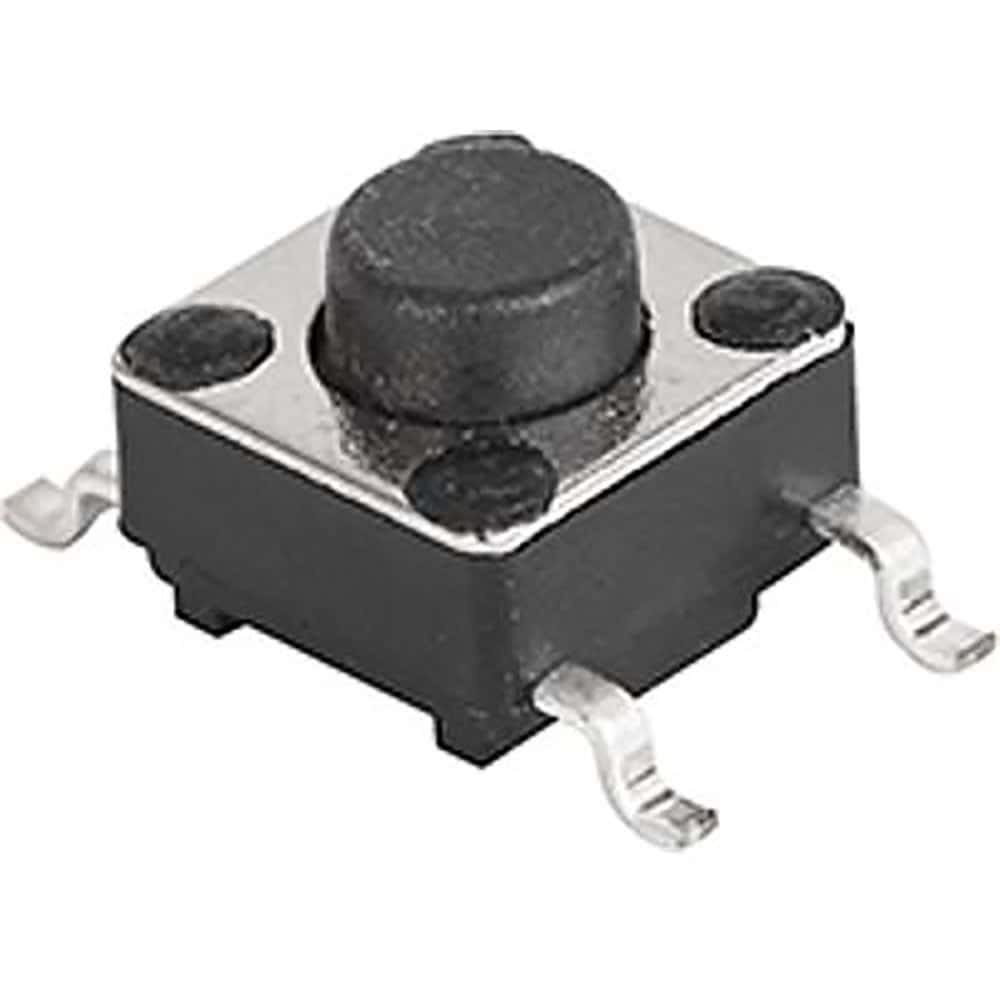

SPST momentary-tactile keypad switch with a 0.05A, 12VDC rating. Features silver contact plating, 1.6N operating force, and 0.25mm switch travel. Designed for surface mount with straight gull wing termination, this non-illuminated or illuminated switch offers a mechanical life of 100,000 cycles and an IP40 rating. Operates within a temperature range of -20°C to 70°C.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 1301.9315.24 technical specifications.
General
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
50mA
Depth
10mm
Illumination Type
Non-Illuminated, Illuminated
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Force
1.6N
Orientation
Straight
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LSH
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
Voltage Rating (AC)
12V
DC Rated Voltage
12V
Compliance
RoHS
Compliant
