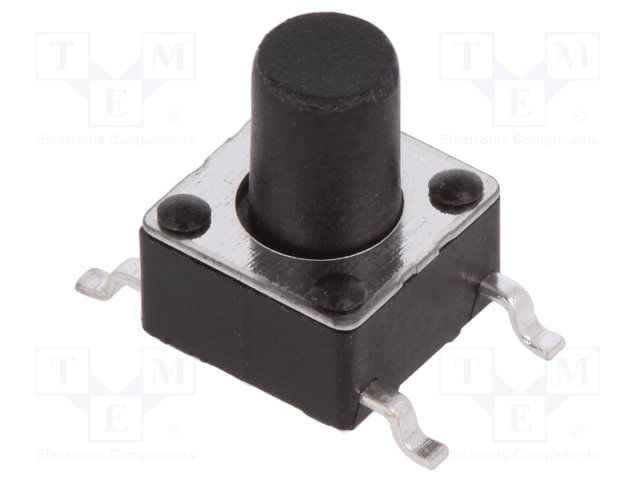

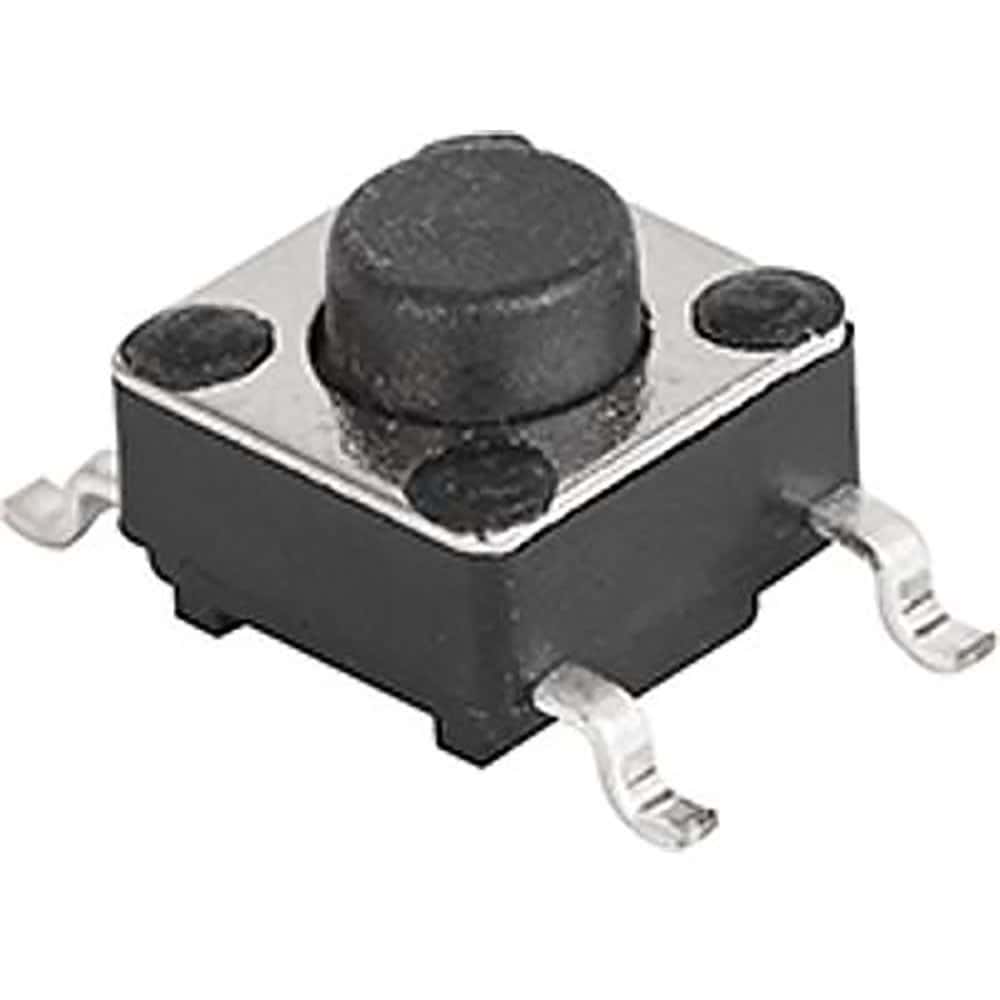

Momentary-tactile keypad switch featuring SPST (Single Pole Single Throw) configuration and a 0.05A, 12VDC rating. This surface-mount component offers a 2.1N operating force, 0.25mm switch travel, and a mechanical life of 100,000 cycles. Constructed with copper and silver contacts, it is RoHS compliant and rated IP40. Available in non-illuminated and illuminated options, with a straight orientation and gull wing termination.
Voltage Rating12V
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 1301.9318 technical specifications.
General
Actuator Length
4.4mm
Actuator Type
Standard
Contact Material
Copper, Silver
Current Rating
50mA
Depth
10mm
Illumination Type
Non-Illuminated, Illuminated
Length
6mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Force
1.6N
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LSH
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
Voltage Rating
12V
DC Rated Voltage
12V
Weight
0.010582oz
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 1301.9318 Datasheet
Download the complete datasheet for Schurter 1301.9318 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
