Panel mount fuse holder for 5mm x 20mm fuses, rated for 400V and 16A. Features a thermoplastic body with a black color and tin-plated copper alloy contacts. Offers UL94 V-0 flammability rating, IP40 protection, and operates within a -40°C to 85°C temperature range. Approved by UL, CSA, VDE, and SEMKO, this illuminated, single-pole holder is suitable for solder termination.
Voltage400V
Voltage Rating250V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 3101.0030 technical specifications.
General
Approvals
UL, CSA, VDE, SEMKO
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
16A
Diameter
15mm
Flammability Rating
UL94 V-0
Fuse Current
16A
Fuse Size
0.197 Dia x 0.787 L (5mm x 20mm)
Illumination Type
Illuminated
Lead Free
Lead Free
Length
40mm
Material
Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Series
FPG3
Termination
Solder
Voltage
400V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.173195oz
Compliance
RoHS
Compliant
Datasheet
Schurter 3101.0030 Datasheet
Download the complete datasheet for Schurter 3101.0030 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

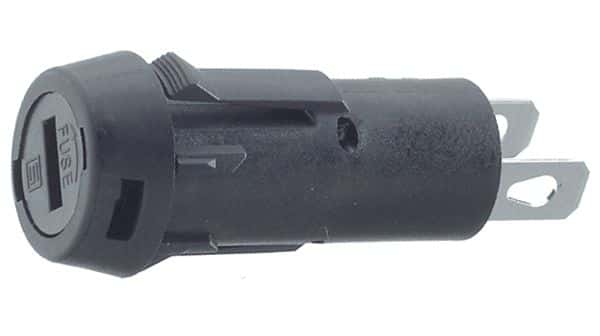

Product Images
