Illuminated fuse holder for 5mm x 20mm fuses, rated for 16A and 400VAC. Features solder lug termination for panel mounting and a durable black thermoplastic body with copper alloy, tin-plated contacts. Operates across a wide temperature range from -40°C to 85°C, with a flammability rating of UL94 V-0 and IP67 ingress protection. Approvals include UL, CSA, VDE, IEC, and EN.
Voltage400V
Voltage Rating250V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 3101.0110 technical specifications.
General
Approvals
UL, CSA, VDE, IEC, EN
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
16A
Diameter
318mm
Flammability Rating
UL94 V-0
Fuse Current
16A
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Lead Free
Lead Free
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Power Dissipation
2.5W
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
Series
FPG1
Termination
Solder
Voltage
400V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.207411oz
Compliance
RoHS
Compliant
Datasheet
Schurter 3101.0110 Datasheet
Download the complete datasheet for Schurter 3101.0110 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

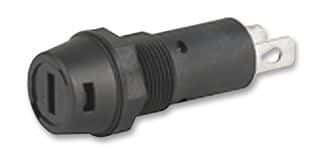

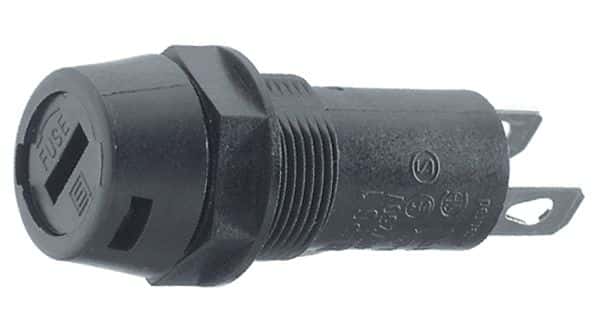

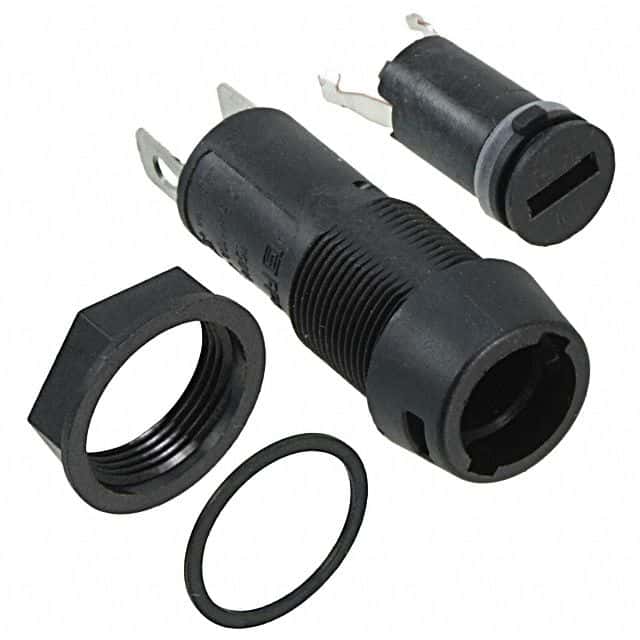

Product Images
