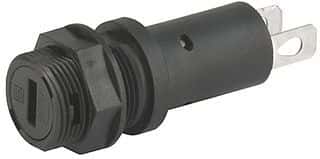

Illuminated fuse holder for 5mm x 20mm fuses, rated for 16A and 250VAC/250VDC. Features a single pole, single circuit design with solder lug termination and panel mount capability. Constructed with a black thermoplastic body and copper alloy, tin-plated contacts, it operates within a temperature range of -40°C to 85°C and boasts IP67 ingress protection. Approvals include UL, CSA, VDE, IEC, and EN, with a UL94 V-0 flammability rating.
Voltage500V
Voltage Rating250V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 3101.0120 technical specifications.
General
Approvals
UL, CSA, VDE, IEC, EN
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
16A
Flammability Rating
UL94 V-0
Fuse Current
16A
Fuse Size
5mm x 20mm
Illumination Type
Illuminated
Material
Tin, Thermoplastic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Ratings
IP67
Reach SVHC Compliant
No
Series
FPG2
Termination
Solder
Voltage
500V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.212349oz
Compliance
RoHS
Compliant
