Illuminated, panel-mount fuse holder for 5x20mm fuses. Features a thermoplastic black body with tin-plated copper alloy contacts. Rated for 16A and 400V AC, with a maximum operating temperature of 85°C. Designed for single-circuit, single-pole applications with quick connect termination.
Voltage400V
Voltage Rating250V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Schurter 3101.0210 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Contact Material
Copper Alloy, Tin
Contact Plating
Tin
Current Rating
16A
Fuse Size
0.197 Dia x 0.787 L (5mm x 20mm)
Illumination Type
Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Packaging
Bulk
Series
FPG1
Termination
Quick Connect
Voltage
400V
Voltage Rating
250V
Voltage Rating (AC)
400V
Weight
0.204236oz
Compliance
RoHS
Compliant
Datasheet
Schurter 3101.0210 Datasheet
Download the complete datasheet for Schurter 3101.0210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

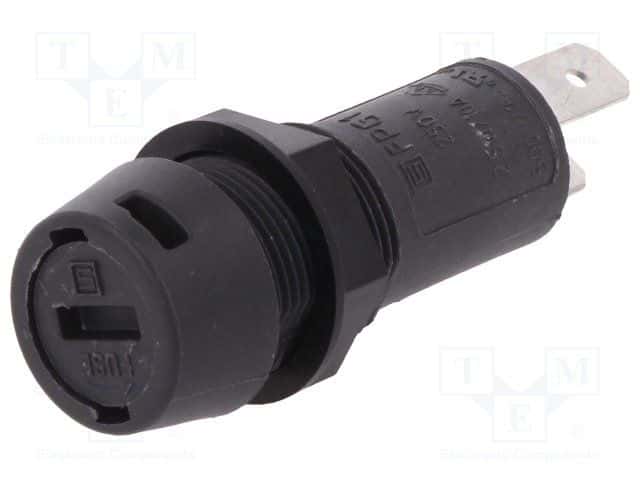

Product Images
