Very fast-acting electric fuse, 2A current rating, 63VAC/63VDC voltage rating, with a 50A interrupting rating. Features a thermoplastic body, copper alloy contacts with tin plating, and a UL94 V-0 flammability rating. Designed for surface mount (SMD/SMT) PCB applications, measuring 7.4mm x 3.1mm x 2.6mm. Operates across a temperature range of -55°C to 125°C and is RoHS compliant.
PackageSMD/SMT
Current2A
Voltage Rating63V
Current Rating2A
Quick Jump:
Technical Specifications
Schurter 3402.0012.11 technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Package/Case
SMD/SMT
Contact Material
Copper Alloy
Contact Plating
Tin
Current
2A
Current Rating
2A
Flammability Rating
UL94 V-0
Fuse Current
2A
Fuse Size
7.4 X 3.1mm
Height
2.6mm
Lead Free
Lead Free
Length
7.4mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
63V
Max Voltage Rating (DC)
63V
Mount
Surface Mount, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OMF 63
Terminal Material
Tin
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
63V
DC Rated Voltage
63V
Weight
0.003527oz
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3402.0012.11 Datasheet
Download the complete datasheet for Schurter 3402.0012.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

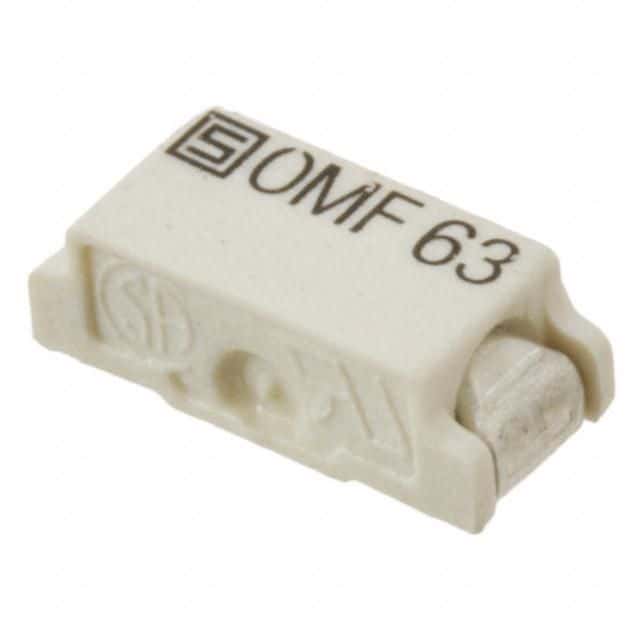

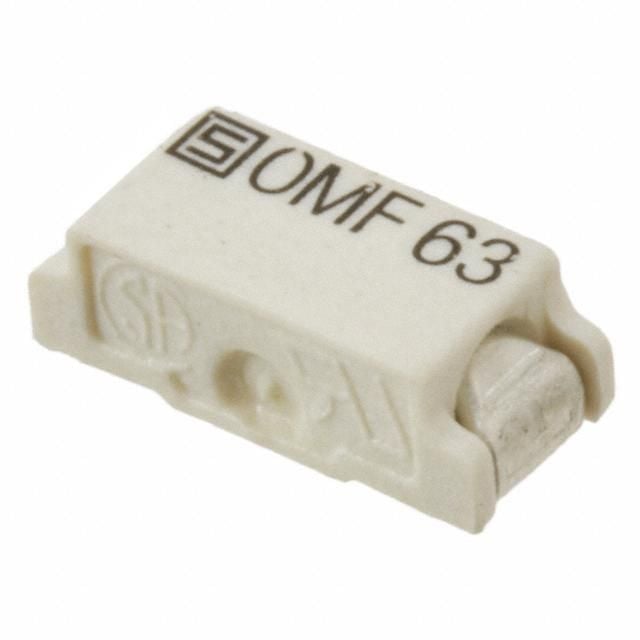

Product Images
