Time-lag electric fuse for surface mount applications, featuring a 500mA current rating and 250VAC/125VDC voltage ratings. This ceramic body fuse offers a 200A interrupting rating and operates within a -55°C to 125°C temperature range. Designed for PCB mounting, it has a 10.1 x 3mm fuse size and is RoHS compliant.
PackageSMD/SMT
Storage3mm
Voltage Rating250V
Current Rating500mA
Quick Jump:
Technical Specifications
Schurter 3403.0163.11 technical specifications.
General
Approvals
UL, VDE, CQC, KC, CSA, IEC
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Tin
Current Rating
500mA
Depth
3mm
Fuse Size
10.1 X 3mm
Height
3mm
Lead Free
Lead Free
Length
10.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Surface Mount, PCB
Package Quantity
100
Packaging
Bulk
Power Dissipation
500mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
UMT 250
Size
3mm
Termination
SMD/SMT
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
125V
Weight
0.008113oz
Width
3mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Schurter 3403.0163.11 Datasheet
Download the complete datasheet for Schurter 3403.0163.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

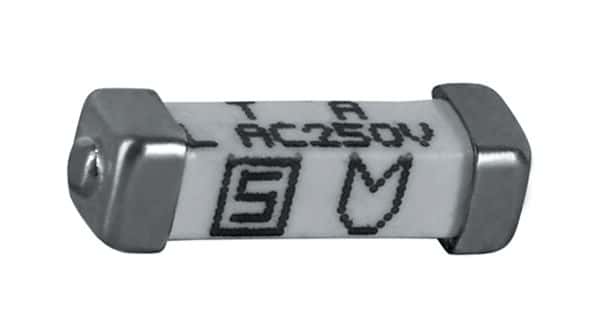

Product Images
