Fast-acting SMD fuse with a 375mA current rating and 125V AC/DC voltage rating. Features a thermoplastic construction with UL94 V-0 flammability. Surface mountable with solder pad termination, measuring 7.4 x 3.1mm with a 2.6mm height. Operating temperature range from -55°C to 125°C, lead-free, RoHS compliant, and cURus/cULus approved.
PackageSMD/SMT
Voltage Rating125V
Current Rating375mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 3404.0044.11 technical specifications.
General
Approvals
cURus, cULus
Package/Case
SMD/SMT
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
375mA
Flammability Rating
UL94 V-0
Fuse Size
7.4 X 3.1mm
Height
0.102inch
Lead Free
Lead Free
Length
0.291inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Surface Mount
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
OMF 125
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.003527oz
Width
0.122inch
Compliance
RoHS
Compliant
Datasheet
Schurter 3404.0044.11 Datasheet
Download the complete datasheet for Schurter 3404.0044.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

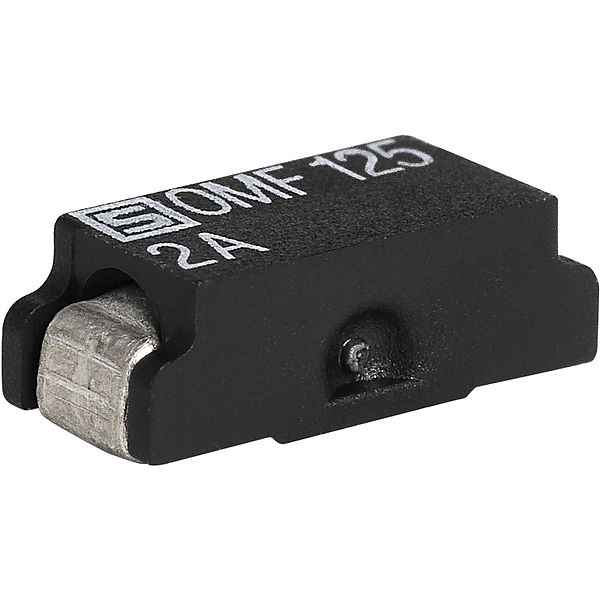

Product Images
