Very fast-acting chip fuse, 1A current rating, 63V DC voltage rating, and 32V AC voltage rating. Features a 0603 SMD package with solder pad termination, measuring 1.6 x 0.8 x 0.6mm. Constructed with a glass and epoxy body, and copper terminals. Operates within a temperature range of -55°C to 90°C, with a DC cold resistance of 75mR. This RoHS compliant component is supplied on tape and reel, with cURus, UL, and CSA approvals.
Package0603
Voltage Rating63V
Current Rating1A
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Schurter 3412.0115.24 technical specifications.
General
Approvals
cURus, UL, CSA
Body Material
Glass, Epoxy
Package/Case
0603
Current Rating
1A
DC Cold Resistance
75mR
Fuse Size
1.6 X 0.8 X0.6mm
Height
0.6mm
Length
1.6mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
32V
Max Voltage Rating (DC)
63V
Mount
Surface Mount, PCB
Package Quantity
5000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
USF 0603
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
32V
DC Rated Voltage
63V
Weight
3.5E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3412.0115.24 Datasheet
Download the complete datasheet for Schurter 3412.0115.24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

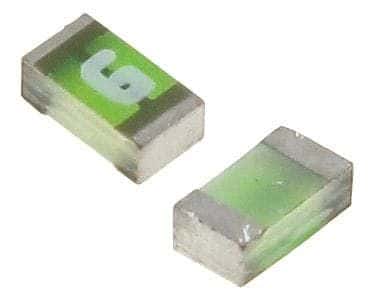

Product Images
