Super fast blow electric fuse, 2.5A current rating, 32VAC/63VDC voltage rating, and 50A interrupt rating. Features a 1206 (3216 metric) surface mount case code with glass and epoxy body material, gold plated contacts, and copper terminals. Operating temperature range from -55°C to 90°C, with a DC cold resistance of 20.5mR. HALOGEN FREE AND ROHS COMPLIANT, supplied in tape and reel packaging.
Package1206
Voltage Rating32V
Current Rating2.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Schurter 3413.0120.22 technical specifications.
General
Approvals
cURus
Body Material
Glass, Epoxy
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Plating
Gold
Current Rating
2.5A
DC Cold Resistance
20.5mR
Fuse Current
2.5A
Fuse Size
3.2 X 1.6mm
Height
0.6mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
32V
Max Voltage Rating (DC)
63V
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
USF 1206
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
63V
Weight
0.000212oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3413.0120.22 Datasheet
Download the complete datasheet for Schurter 3413.0120.22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

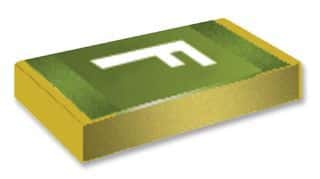

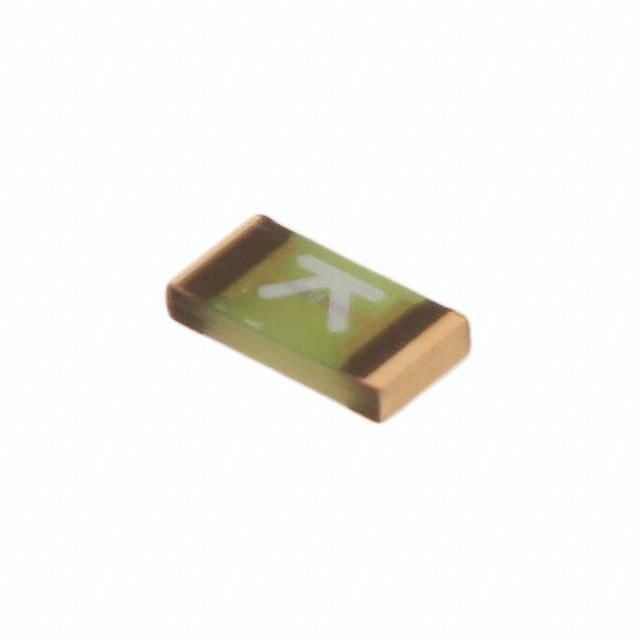

Product Images
