Surface mount electric fuse, slow blow, rated for 25A and 32VAC/63VDC. Features a 100A interrupt rating, 1.3mΩ DC cold resistance, and operates within a -55°C to 90°C temperature range. Housed in a 1206 (3216 metric) glass and epoxy body with tin-plated copper terminals. This component is HALOGEN FREE and ROHS COMPLIANT, supplied in tape and reel packaging.
Package1206
Resistance1.3MR
Voltage Rating32V
Current Rating25A
Quick Jump:
Technical Specifications
Schurter 3413.0332.22 technical specifications.
General
Approvals
cULus
Body Material
Glass, Epoxy
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Material
Copper
Contact Plating
Tin
Current Rating
25A
DC Cold Resistance
1.3mR
Fuse Current
25A
Height
0.6mm
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
1.3MR
RoHS Compliant
Yes
Series
UST 1206
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
63V
Weight
0.000212oz
Width
1.6mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Schurter 3413.0332.22 Datasheet
Download the complete datasheet for Schurter 3413.0332.22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

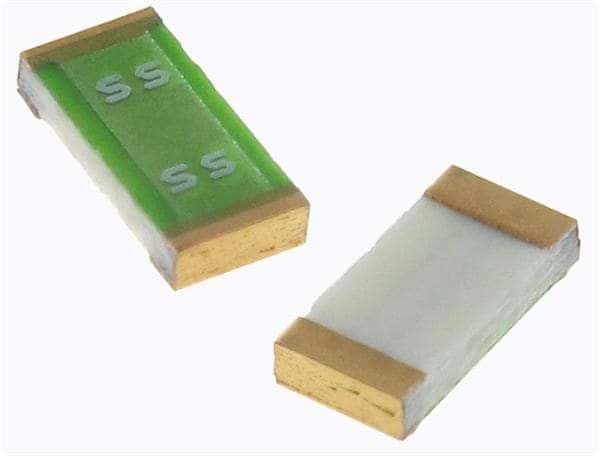

Product Images
