Very fast-acting chip fuse, 375mA current rating, 32V DC voltage rating. Features a 1.05 x 0.55mm fuse size in a 0402 SMD package, suitable for surface mount PCB applications. Constructed with thermoset body material and gold-plated terminals, it offers a DC cold resistance of 173mR and operates within a -55°C to 125°C temperature range. This RoHS compliant component is supplied in tape and reel packaging and holds CCC, cURus, and cULus approvals.
Package0402
Resistance173mR
Voltage Rating32V
Current Rating375mA
Quick Jump:
Technical Specifications
Schurter 3414.0112.22 technical specifications.
General
Approvals
cURus, cULus, CCC
Body Material
Thermoset
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Contact Plating
Gold
Current Rating
375mA
DC Cold Resistance
173mR
Fuse Size
1.05 X 0.55mm
Height
0.019inch
Length
1.05mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
32V
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Resistance
173mR
RoHS Compliant
Yes
Series
USF 0402
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
32V
DC Rated Voltage
32V
Weight
7.1E-05oz
Width
0.55mm
Compliance
RoHS
Compliant
Datasheet
Schurter 3414.0112.22 Datasheet
Download the complete datasheet for Schurter 3414.0112.22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

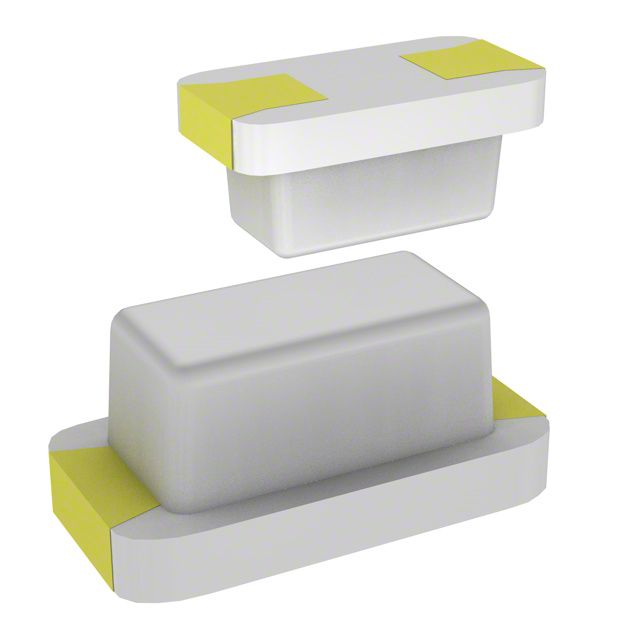

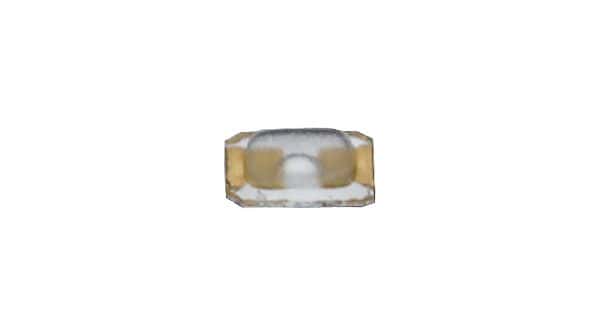

Product Images
