Unfiltered power entry module for AC applications, featuring a 3-position, 1-port design with a 10A current rating and 250VAC voltage rating. This thermoplastic module supports 5 x 20mm fuses and offers panel, screw, through-hole, and flange mounting options with straight/right-angle orientation. It boasts a UL94 V-0 flammability rating, IP40 protection, and operates within a -25°C to 70°C temperature range. RoHS compliant and lead-free, this component is suitable for solder termination.
FrequencyN/A
PackageModule
Voltage250V
Current10A
Quick Jump:
Technical Specifications
Schurter 4301.3201 technical specifications.
General
Application(s)
AC
Body Material
Thermoplastic
Package/Case
Module
Current
10A
Current Rating
10A
Depth
41.4mm
Flammability Rating
UL94 V-0
Fuse Current
10A
Fuse Size
5 x 20mm
Gender
Male
Lead Free
Lead Free
Length
44mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Screw, Through Hole, Flanges
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Right Angle
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KEA-Print
Termination
Solder
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.634931oz
Compliance
RoHS
Compliant
Datasheet
Schurter 4301.3201 Datasheet
Download the complete datasheet for Schurter 4301.3201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

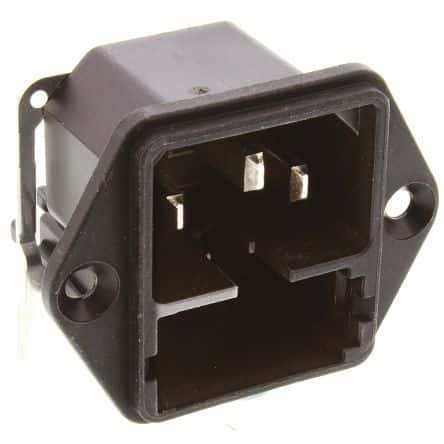

Product Images
