2-pole, 3-position filtered power entry module featuring a DPST switch. Rated for 250VAC at 10A, with a maximum current rating of 15A. Panel mountable with screw or flange options, it offers straight quick connect termination and a UL94 V-0 flammability rating. Operating temperature range is -25°C to 70°C, with IP40 protection.
FrequencyN/A
PackageModule
Current15A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 4302.2001 technical specifications.
General
Package/Case
Module
Color
Black
Contact Plating
Tin
Current
15A
Current Rating
15A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KEB2
Termination
Quick Connect
Throw Configuration
DPST
Type
Switch
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.620822oz
Compliance
RoHS
Compliant
Datasheet
Schurter 4302.2001 Datasheet
Download the complete datasheet for Schurter 4302.2001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

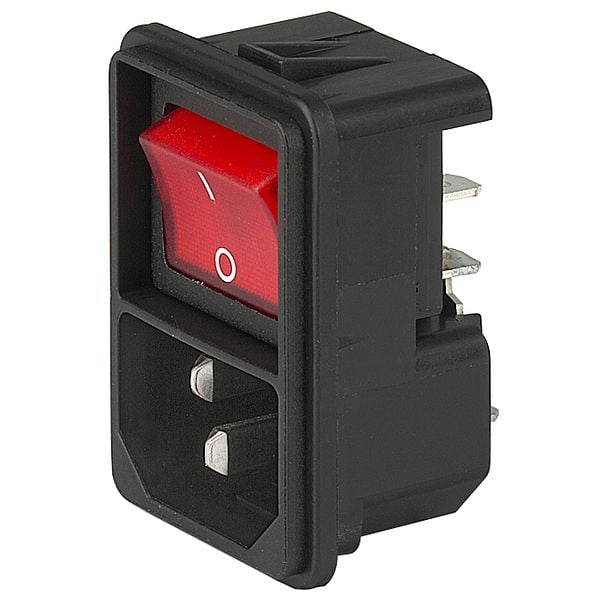

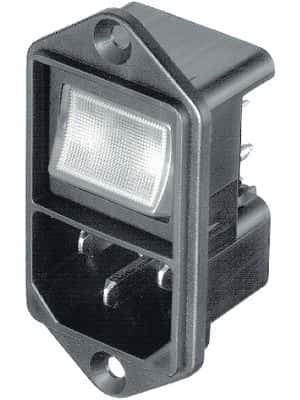

Product Images
