2-pole, 3-position filtered power entry module with integrated switch. Rated for 250VAC at 10A, featuring quick connect termination and a straight orientation. Designed for panel or snap-in mounting with a maximum panel thickness of 0.059 inches. UL, CSA, VDE, and CCC approved, with UL94 V-0 flammability rating. Operating temperature range from -25°C to 85°C.
FrequencyN/A
PackageModule
Current15A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 4302.2002 technical specifications.
General
Application(s)
AC
Approvals
UL, CSA, VDE, CCC
Package/Case
Module
Color
Black
Contact Plating
Tin
Current
15A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Panel Thickness
0.059inch
Plating Thickness
1.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KEB2
Termination
Quick Connect
Type
Switch
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.620822oz
Compliance
RoHS
Compliant
Datasheet
Schurter 4302.2002 Datasheet
Download the complete datasheet for Schurter 4302.2002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

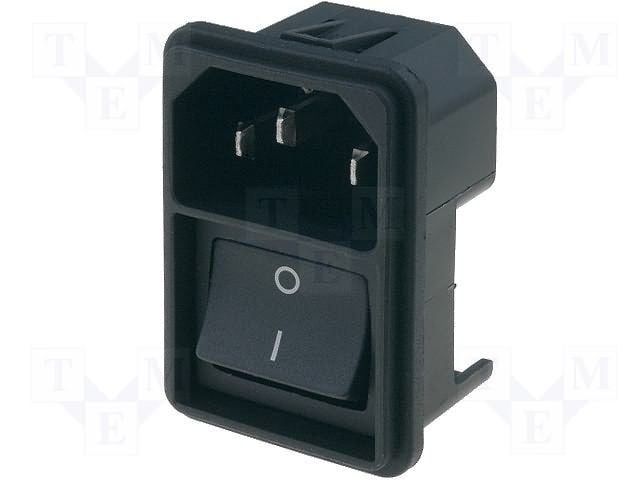

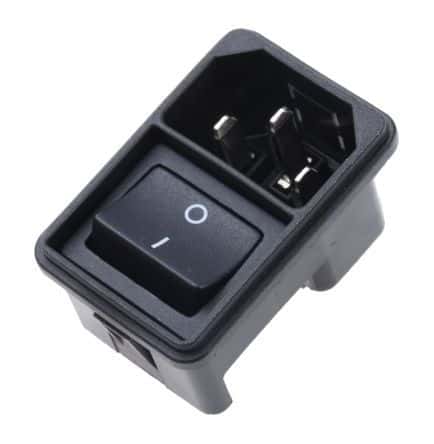

Product Images
