1-pole thermal circuit breaker with pushbutton actuator, rated for 1.5A and 240V AC / 48V DC. Features quick connect termination and panel/chassis mounting. Operating temperature range from -5°C to 60°C. Approvals include UL, VDE, CSA, IEC, and EN. RoHS compliant.
Voltage Rating240V
Current Rating1.5A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Schurter 4400.0056 technical specifications.
General
Actuator Type
Pushbutton
Approvals
UL, VDE, CSA, IEC, EN
Breaker Type
Thermal
Color
Black
Current Rating
1.5A
Height
50.2mm
Lead Free
Lead Free
Length
50.2mm
Max Operating Temperature
60°C
Min Operating Temperature
-5°C
Mount
Panel, Chassis
Number of Poles
1
Operating Supply Voltage
240V
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
T11
Termination
Quick Connect
Trip Current
1.5A
Voltage Rating
240V
Voltage Rating (AC)
240V
DC Rated Voltage
48V
Weight
0.327695oz
Width
19mm
Compliance
RoHS
Compliant
Datasheet
Schurter 4400.0056 Datasheet
Download the complete datasheet for Schurter 4400.0056 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

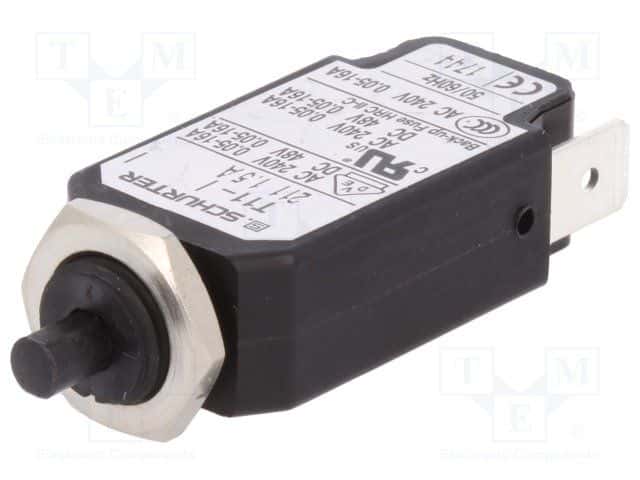

Product Images
