3-position, 3-pole filtered power entry module with a 6A current rating and 125VAC voltage rating. Features include DC filter type, shielded design, and UL94 V-0 flammability. Mountable via panel, flanges, or screw, with straight quick connect termination. Operating temperature range is -25°C to 85°C. Approvals include cULus and ENEC.
FrequencyN/A
PackageModule
Current6A
Resistance1MR
Quick Jump:
Technical Specifications
Schurter 5003.1221.1 technical specifications.
General
Approvals
cULus, ENEC
Package/Case
Module
Current
6A
Current Rating
6A
Depth
61mm
Features
Shielded
Filter Type
DC
Flammability Rating
UL94 V-0
Fuse
No
Gender
Female
Height
24.6mm
Lead Free
Lead Free
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Resistance
1MR
RoHS Compliant
Yes
Series
5003
Termination
Quick Connect
Voltage Rating
125V
DC Rated Voltage
125V
Weight
1.410958oz
Width
48.6mm
Compliance
RoHS
Compliant
Datasheet
Schurter 5003.1221.1 Datasheet
Download the complete datasheet for Schurter 5003.1221.1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

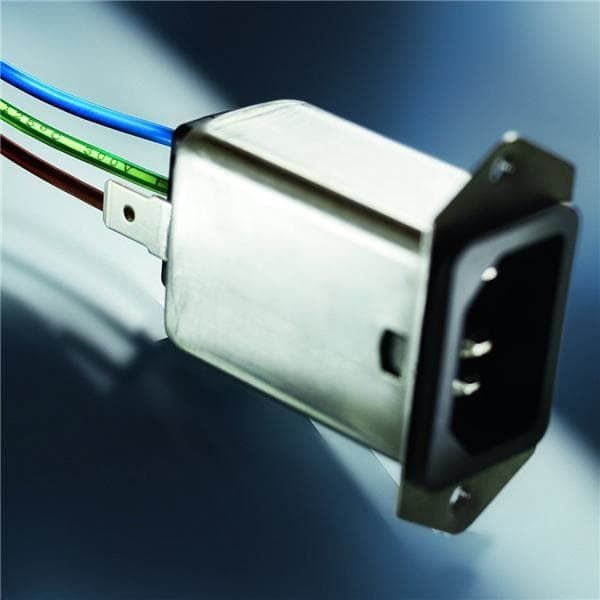

Product Images
