Single-phase EMI/RFI power line filter designed for AC applications. Features a 1A current rating, 250V AC voltage rating, and operates at 50/60 Hz. Includes 10mH inductance and a leakage current of 250uA. Through-hole mounting with PC pin terminations. Compliant with RoHS standards and approved by VDE, cULus, ENEC, and UL. Operating temperature range from -25°C to 85°C.
Frequency60Hz
Current1A
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 5500.2015 technical specifications.
General
Application(s)
AC
Approvals
VDE, cULus, ENEC, UL
Contact Plating
Tin
Current
1A
Current Rating
1A
Depth
45mm
Frequency
60Hz
Height
17.5mm
Inductance
10mH
Lead Free
Lead Free
Leakage Current
250uA
Length
24mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Operating Frequency
50|60 Hz
Package Quantity
70
Packaging
Bulk
RoHS Compliant
Yes
Series
FPP-02
Termination
PC Pins
Voltage Rating (AC)
250V
Weight
1.128767oz
Compliance
RoHS
Compliant
Datasheet
Schurter 5500.2015 Datasheet
Download the complete datasheet for Schurter 5500.2015 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

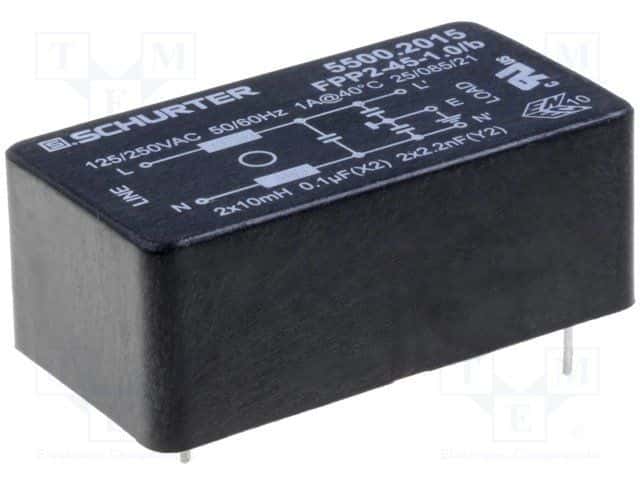

Product Images
