Single-phase EMI/RFI power line filter rated for 250V AC and 12A, operating at 50/60 Hz. Features 5mH inductance and 2.2uF capacitance, with a leakage current of 3.5mA. Chassis mountable with terminal block termination, this filter is RoHS compliant and operates between -25°C and 100°C. Approvals include VDE, cULus, ENEC, and UL.
Frequency60Hz
Current12A
Capacitance2.2uF
Current Rating12A
Quick Jump:
Technical Specifications
Schurter 5500.2069 technical specifications.
General
Approvals
VDE, cULus, ENEC, UL
Capacitance
2.2uF
Current
12A
Current Rating
12A
Depth
106mm
Frequency
60Hz
Height
58mm
Inductance
5mH
Lead Free
Lead Free
Leakage Current
3.5mA
Length
106mm
Max Current Rating
12A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Mount
Chassis Mount, Flanges, Panel, Screw
Operating Frequency
50|60 Hz
Package Quantity
2
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
FMBB
Termination
Terminal Block
Voltage Rating (AC)
250V
Weight
2.205lb
Compliance
RoHS
Compliant
Datasheet
Schurter 5500.2069 Datasheet
Download the complete datasheet for Schurter 5500.2069 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

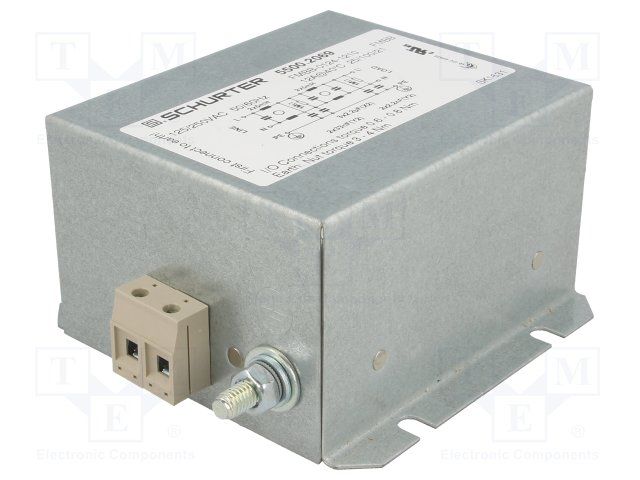

Product Images
