Technical Specifications
Schurter 5500.2095 technical specifications.
General
Approvals
VDE, cULus, ENEC, UL
Package/Case
Aluminum
Current
10A
Current Rating
2A
Frequency
60Hz
Inductance
5mH
Leakage Current
500uA
Length
51mm
Max Current Rating
10A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Chassis Mount, Flanges
Operating Frequency
50|60 Hz
Package Quantity
10
Packaging
Bulk
RoHS Compliant
Yes
Series
FMLB-51
Termination
Quick Connect
Voltage Rating (AC)
250V
Weight
7.47808oz
Compliance
RoHS
Compliant
Datasheet
Schurter 5500.2095 Datasheet
Download the complete datasheet for Schurter 5500.2095 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

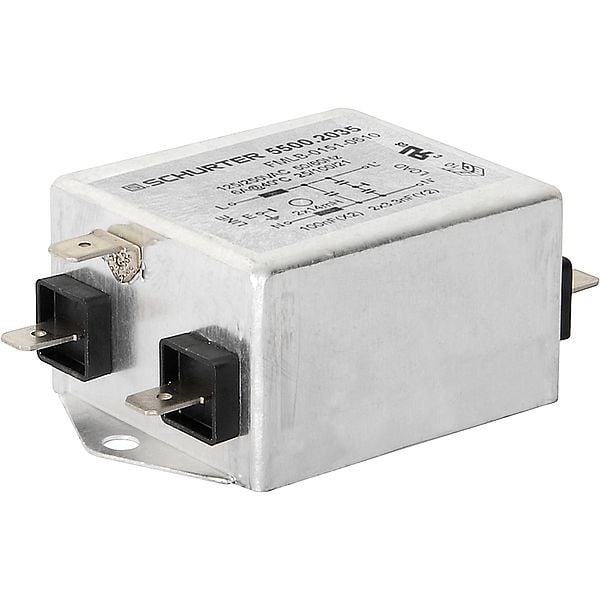

Product Images
