Filtered Power Entry Module with 3 positions, rated for 250VAC and 6A, featuring a built-in fuse holder. This shielded module offers 2 poles and 3 contacts, with quick connect termination. It includes a 100nF capacitor and 0.8mH inductance, with a 1MR resistance. Designed for panel mounting with flanges and screws, it boasts IP65, water-resistant, and dust-tight ratings, operating from -25°C to 85°C.
FrequencyN/A
PackageModule
Current6A
Capacitance100nF
Quick Jump:
Technical Specifications
Schurter 5707.0601.312 technical specifications.
General
Approvals
cULus, ENEC
Capacitance
100nF
Package/Case
Module
Current
6A
Current Rating
6A
Depth
59.6mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
Yes
Gender
Male
Height
42mm
Inductance
0.8mH
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
10
Packaging
Bulk
Radiation Hardening
No
Ratings
IP65, Water Resistant, Dust Tight
Resistance
1MR
RoHS Compliant
Yes
Series
5707
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Weight
3.377835oz
Width
51mm
Compliance
RoHS
Compliant
Datasheet
Schurter 5707.0601.312 Datasheet
Download the complete datasheet for Schurter 5707.0601.312 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

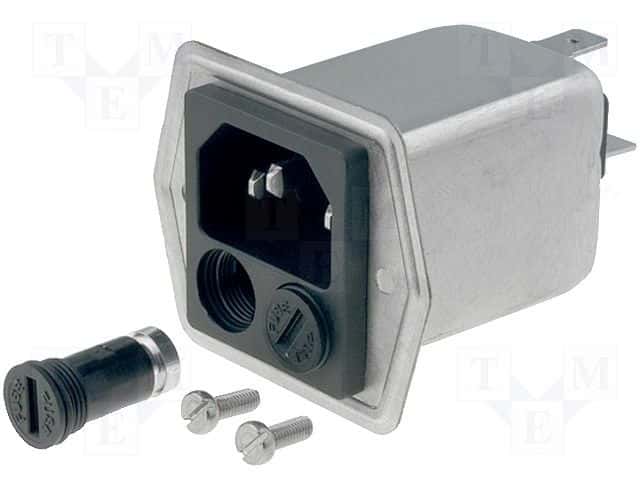

Product Images
